Q3 The Beam Is Supported By A Pin At Point A And Rollers At Point B And Point C It Is Subjected To A Linearly Distribu 1 (133.36 KiB) Viewed 33 times
PLease take your time and make sure the answer is correct.You might have seen a similar problem already on answers. DO NOT copyit thinking it is right as it contains different values anddimensions.

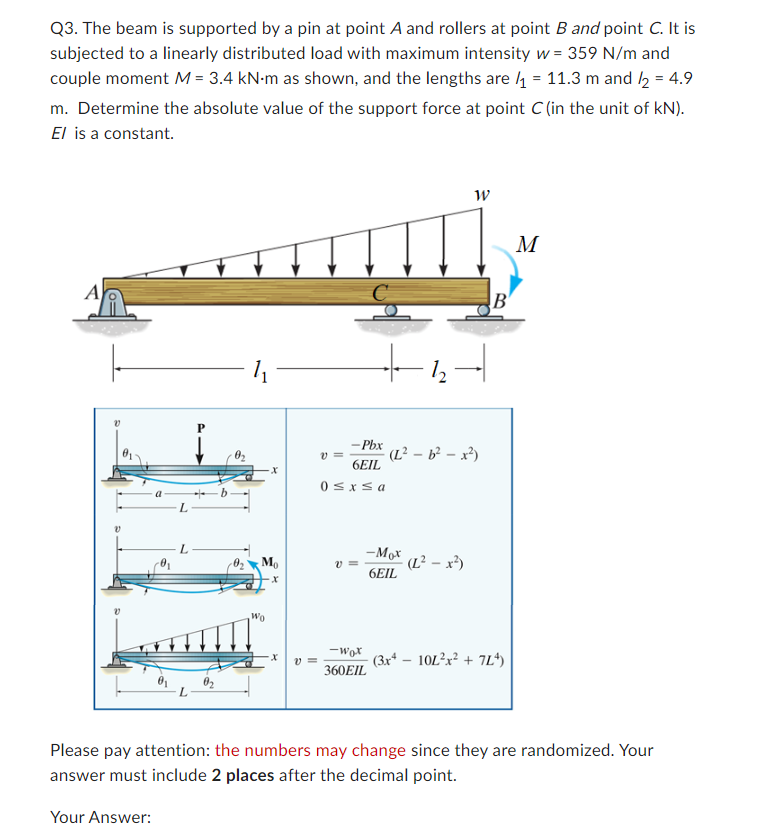

Q3. The beam is supported by a pin at point A and rollers at point B and point C. It is subjected to a linearly distributed load with maximum intensity w = 359 N/m and couple moment M = 3.4 kN-m as shown, and the lengths are /₁ = 11.3 m and /2 = 4.9 m. Determine the absolute value of the support force at point C (in the unit of kN). El is a constant. A V L 0₂ Mo Wo V -Pbx 6EIL 0≤x≤ a v= V = -Mox 6EIL -Wox 360EIL (L²-b²-x²) W (L² - x²) B (3x4 10L²x² + 7L¹) M Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. Your Answer:
