(b) A single-phase 3500/500 transformer has the following winding resistances and reactances: R1 = 0.7 22, R2 = 0.011 2,

Post by answerhappygod »

B A Single Phase 3500 500 Transformer Has The Following Winding Resistances And Reactances R1 0 7 22 R2 0 011 2 1
B A Single Phase 3500 500 Transformer Has The Following Winding Resistances And Reactances R1 0 7 22 R2 0 011 2 1 (40.42 KiB) Viewed 27 times

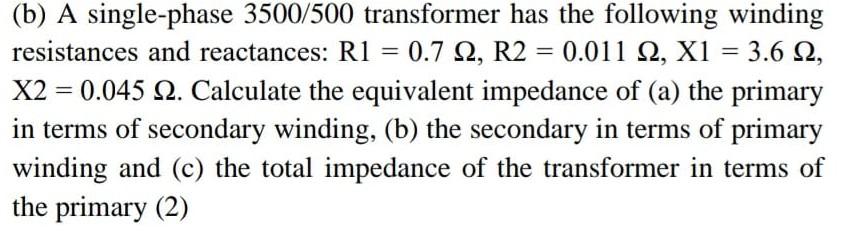

(b) A single-phase 3500/500 transformer has the following winding resistances and reactances: R1 = 0.7 22, R2 = 0.011 2, X1 = 3.6 , X2 = 0.045 2. Calculate the equivalent impedance of (a) the primary in terms of secondary winding, (b) the secondary in terms of primary winding and (c) the total impedance of the transformer in terms of the primary (2)
