Q4 Two 555 timers are connected together as shown in Figure Q4. The diode in the figure is an ideal diode (a) (b) (c) Dr

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q4 Two 555 timers are connected together as shown in Figure Q4. The diode in the figure is an ideal diode (a) (b) (c) Dr

Post by answerhappygod »

Q4 Two 555 Timers Are Connected Together As Shown In Figure Q4 The Diode In The Figure Is An Ideal Diode A B C Dr 1
Q4 Two 555 Timers Are Connected Together As Shown In Figure Q4 The Diode In The Figure Is An Ideal Diode A B C Dr 1 (44.7 KiB) Viewed 42 times

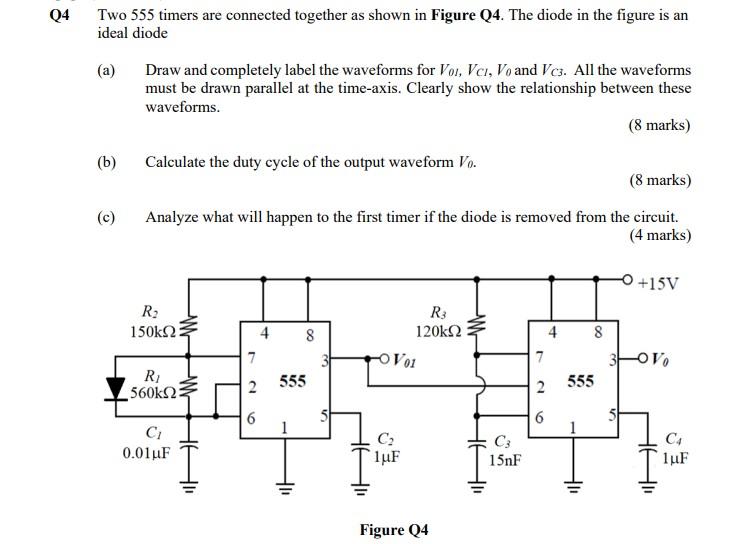

Q4 Two 555 timers are connected together as shown in Figure Q4. The diode in the figure is an ideal diode (a) (b) (c) Draw and completely label the waveforms for Voi, Vci, Vo and VC3. All the waveforms must be drawn parallel at the time-axis. Clearly show the relationship between these waveforms. (8 marks) Calculate the duty cycle of the output waveform Vo. (8 marks) Analyze what will happen to the first timer if the diode is removed from the circuit. (4 marks) R₂ 150kΩ R₁ 560k2: C₁ 0.01 μF 7 2 6 8 555 411 411 R3 120kΩ -OV01 C₂ 1μF Figure Q4 Hell C3 15nF 2 6 8 555 411 +15V 3-0 Vo Hii C4 1uF
