(b) Based on input signal, V¡ in Figure Q (B) analyze, draw and label completely the output waveforms at Vo1, Vo2 and V0

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

(b) Based on input signal, V¡ in Figure Q (B) analyze, draw and label completely the output waveforms at Vo1, Vo2 and V0

Post by answerhappygod »

B Based On Input Signal V In Figure Q B Analyze Draw And Label Completely The Output Waveforms At Vo1 Vo2 And V0 1
B Based On Input Signal V In Figure Q B Analyze Draw And Label Completely The Output Waveforms At Vo1 Vo2 And V0 1 (134.55 KiB) Viewed 19 times

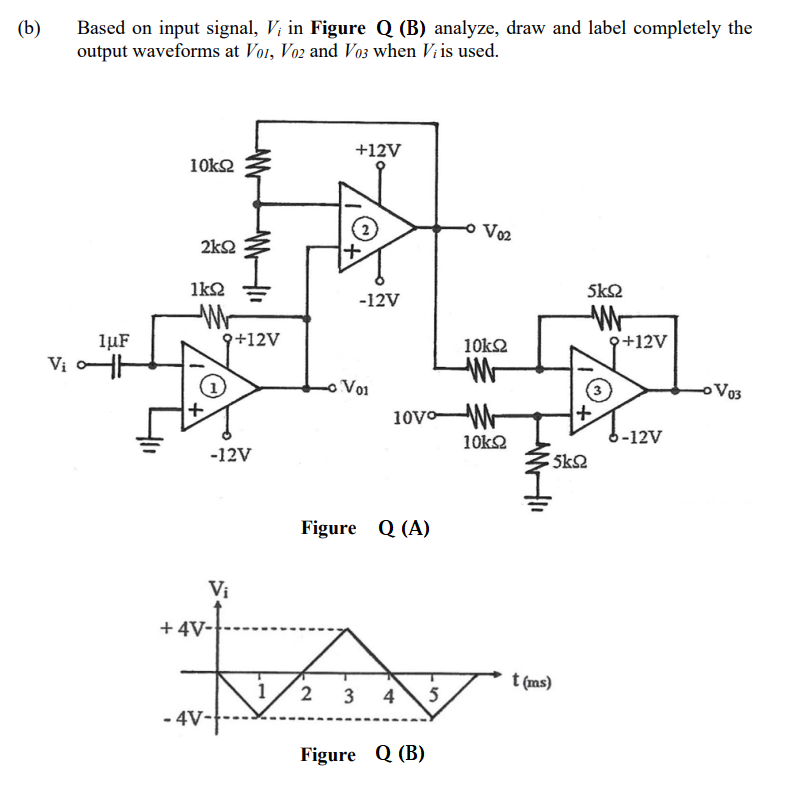

(b) Based on input signal, V¡ in Figure Q (B) analyze, draw and label completely the output waveforms at Vo1, Vo2 and V03 when Vi is used. 1uF Vi h 10kQ2 2kQ2 1kQ2 W 9+12V -12V Vi +12V 2 -12V V01 Figure Q (A) 10V0W 3 4 5 V02 Figure Q (B) 10kΩ W 10kQ2 ww 5kQ2 W t (ms) + 5kQ2 9+12V 6-12V - V03
