(c) Determine the peak output voltage and the average value of the output voltage for the given half-wave rectifier and

Post by answerhappygod »

C Determine The Peak Output Voltage And The Average Value Of The Output Voltage For The Given Half Wave Rectifier And 1
C Determine The Peak Output Voltage And The Average Value Of The Output Voltage For The Given Half Wave Rectifier And 1 (99.3 KiB) Viewed 31 times

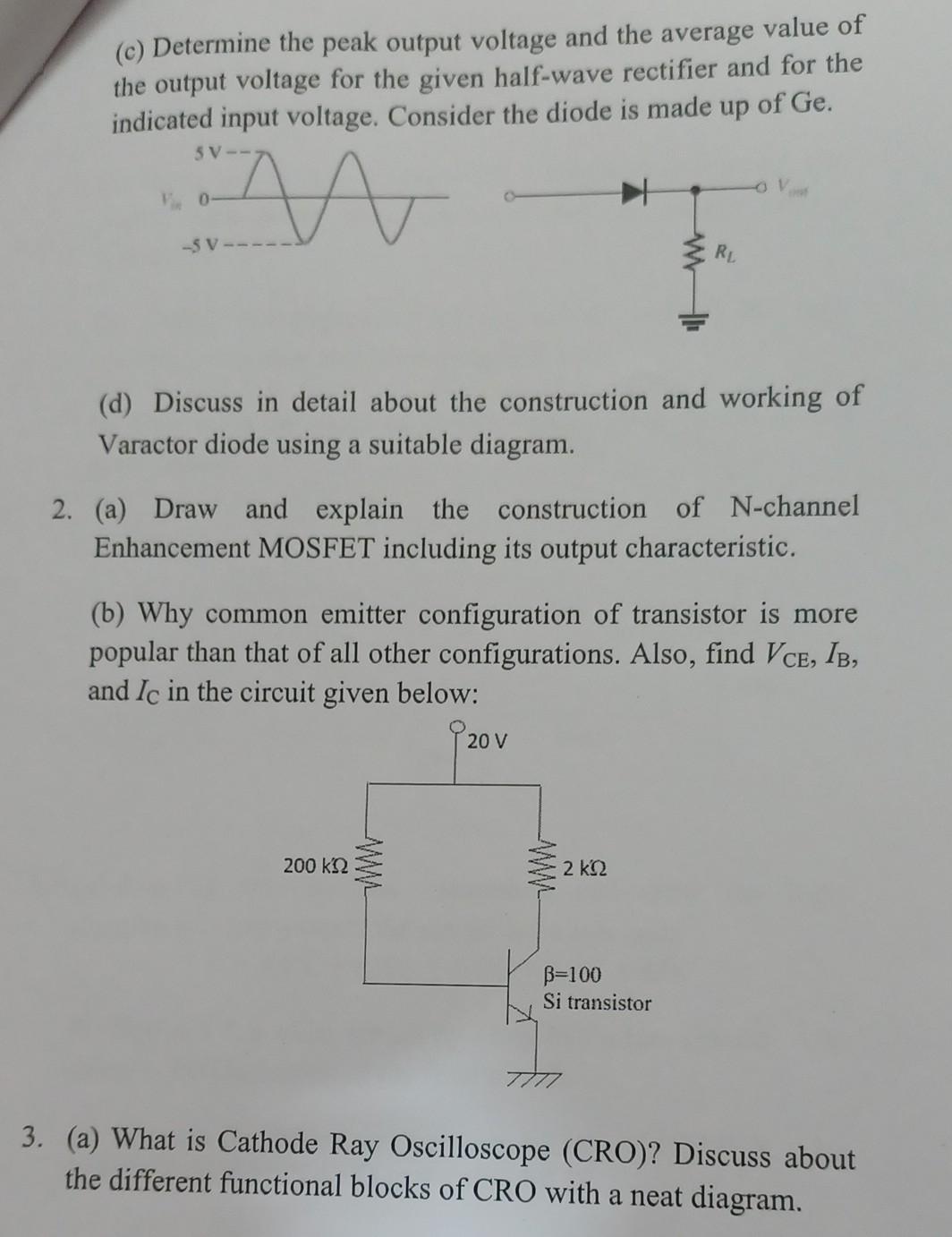

(c) Determine the peak output voltage and the average value of the output voltage for the given half-wave rectifier and for the indicated input voltage. Consider the diode is made up of Ge. M SV- V0- -SV----- (d) Discuss in detail about the construction and working of Varactor diode using a suitable diagram. 2. (a) Draw and explain the construction of N-channel Enhancement MOSFET including its output characteristic. (b) Why common emitter configuration of transistor is more popular than that of all other configurations. Also, find VCE, IB, and Ic in the circuit given below: 200 ΚΏ RL 20 V 2 KQ B=100 Si transistor 3. (a) What is Cathode Ray Oscilloscope (CRO)? Discuss about the different functional blocks of CRO with a neat diagram.
