Q4 (20 points)/ What is the output of the Mealy and Moore machines if a sequence detector is used to detect 11011? Assum

[answerhappygod]

Q4 20 Points What Is The Output Of The Mealy And Moore Machines If A Sequence Detector Is Used To Detect 11011 Assum 1 (67.2 KiB) Viewed 28 times

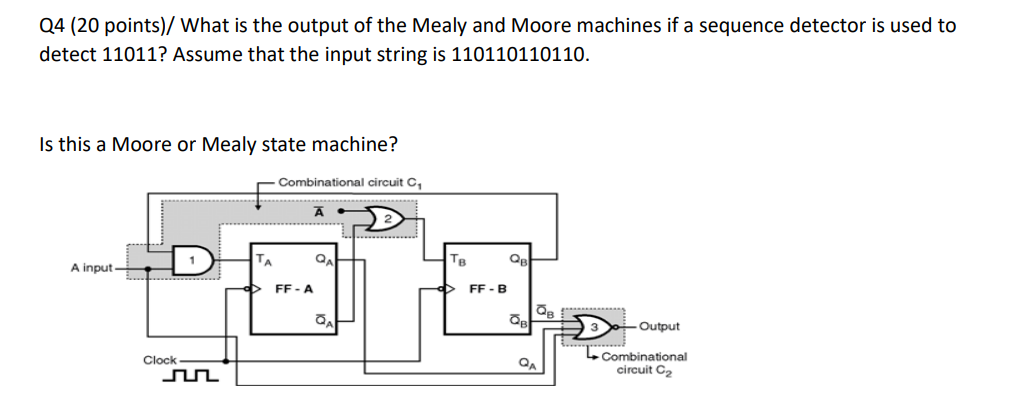

Q4 (20 points)/ What is the output of the Mealy and Moore machines if a sequence detector is used to detect 11011? Assume that the input string is 110110110110. Is this a Moore or Mealy state machine? A input- D .......... Clock Ju TA Combinational circuit C₁ B A Q FF - A JA TB FF - B QB QB QB QA D Output Combinational circuit C₂
