Q1 (a) For the circuit in Figure Q1(a), assume the circuit is in steady state at t = 0 before the switch is moved to pos

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q1 (a) For the circuit in Figure Q1(a), assume the circuit is in steady state at t = 0 before the switch is moved to pos

Post by answerhappygod »

Q1 A For The Circuit In Figure Q1 A Assume The Circuit Is In Steady State At T 0 Before The Switch Is Moved To Pos 1
Q1 A For The Circuit In Figure Q1 A Assume The Circuit Is In Steady State At T 0 Before The Switch Is Moved To Pos 1 (77.09 KiB) Viewed 37 times

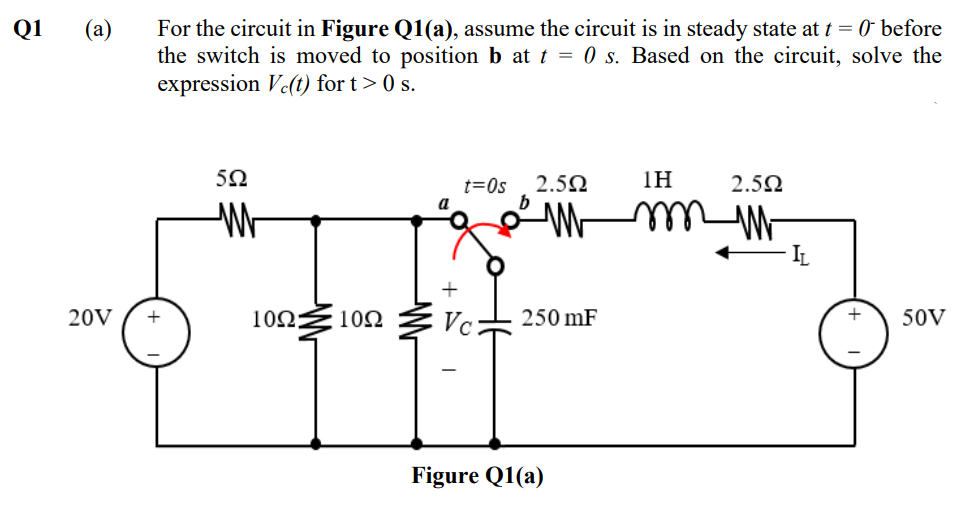

Q1 (a) For the circuit in Figure Q1(a), assume the circuit is in steady state at t = 0 before the switch is moved to position b at t = 0 s. Based on the circuit, solve the expression Vc(t) for t> 0 s. 20V + 502 W 1002: 10Ω t=0s Vc b 1Η 2.5Ω mm M 2.5Ω 250 mF Figure Q1(a) IL + 50V
