QUANTUM PHYSICS QUESTION help!!

Post by **answerhappygod** » Mon Jul 11, 2022 2:35 pm

: Quantum Physics Question Help 1 (38.64 KiB) Viewed 45 times

: Quantum Physics Question Help 2 (99.66 KiB) Viewed 45 times

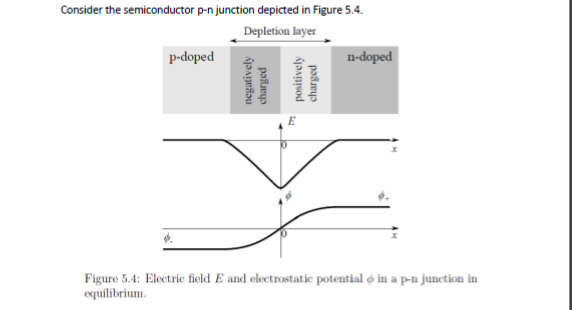

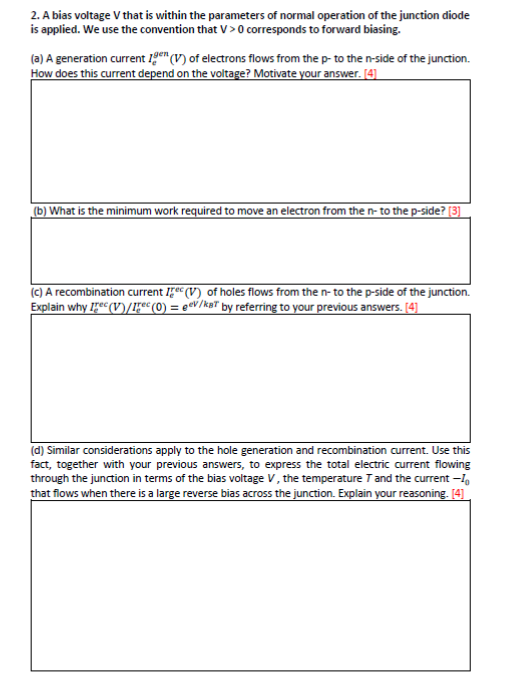

Consider the semiconductor p-n junction depicted in Figure 5.4. Depletion layer p-doped negatively charged positively charged n-doped Figure 5.4: Electric field E and electrostatic potential in a p-n junction in equilibrium.
