1. A freshwater marsh is drained to the ocean through an automatic tide gate which is 6 ft high. The gate is held by hin

[answerhappygod]

1 A Freshwater Marsh Is Drained To The Ocean Through An Automatic Tide Gate Which Is 6 Ft High The Gate Is Held By Hin 1 (192.35 KiB) Viewed 45 times

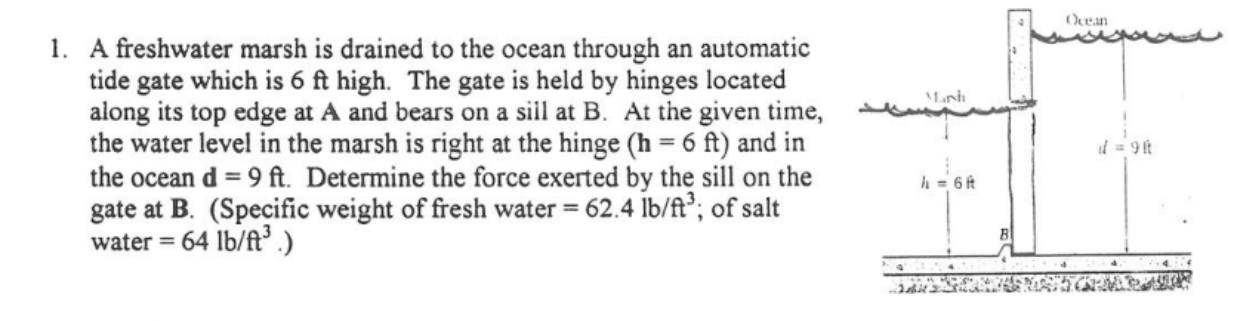

1. A freshwater marsh is drained to the ocean through an automatic tide gate which is 6 ft high. The gate is held by hinges located along its top edge at A and bears on a sill at B. At the given time, the water level in the marsh is right at the hinge (h = 6 ft) and in the ocean d = 9 ft. Determine the force exerted by the sill on the gate at B. (Specific weight of fresh water = 62.4 lb/ft³; of salt water = 64 lb/ft³) h = 6 ft Ocean d = 9 ft
