a 10μF HE 20µF 30µF 30µF 30µF HE 40µF b PRACTICE EXAMPLES 2. As shown on the left for the system of capacitors shown, a

Post by answerhappygod »

1
1 (221.65 KiB) Viewed 44 times

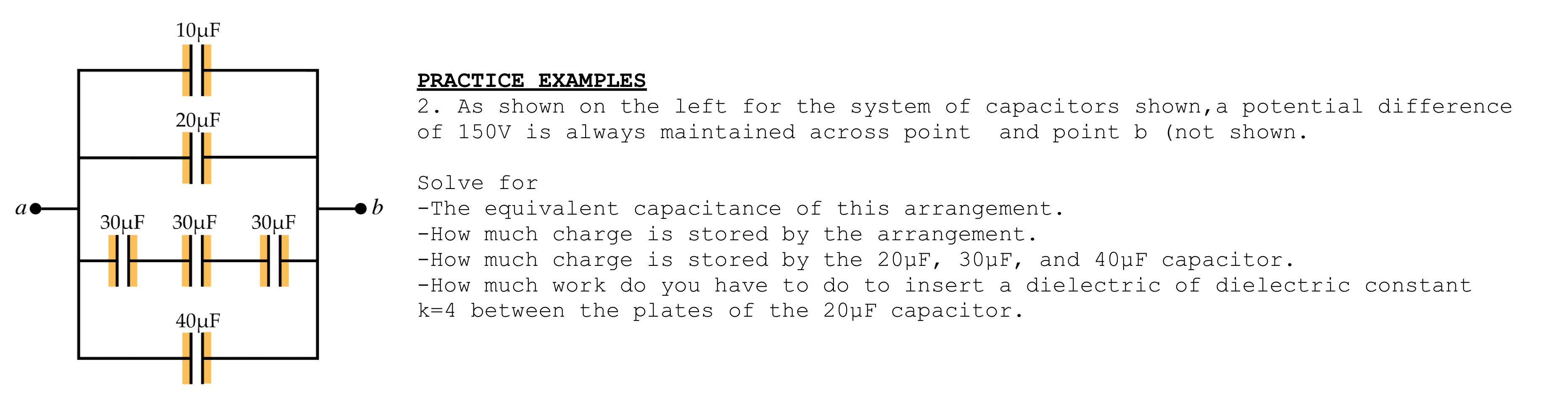

a 10μF HE 20µF 30µF 30µF 30µF HE 40µF b PRACTICE EXAMPLES 2. As shown on the left for the system of capacitors shown, a potential difference of 150V is always maintained across point and point b (not shown. Solve for -The equivalent capacitance of this arrangement. -How much charge is stored by the arrangement. -How much charge is stored by the 20µF, 30μF, and 40μF capacitor. -How much work do you have to do to insert a dielectric of dielectric constant k=4 between the plates of the 20μF capacitor.
