14. An impedance ZL = (11.5 +j10) ohms is connected in parallel with an impedance Zc = (8-j20) ohms. Calculate a) the co

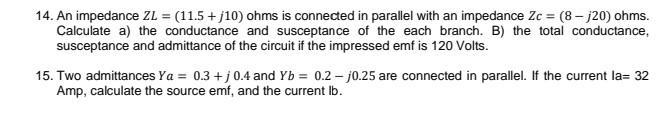

14. An impedance ZL = (11.5 +j10) ohms is connected in parallel with an impedance Zc = (8-j20) ohms. Calculate a) the conductance and susceptance of the each branch. B) the total conductance, susceptance and admittance of the circuit if the impressed emf is 120 Volts. 15. Two admittances Ya = 0.3 +j0.4 and Yb = 0.2-j0.25 are connected in parallel. If the current la= 32 Amp, calculate the source emf, and the current lb.
