The HVDC bridge rectifier is designed to produce 300kV output voltage from 33 kV/250 kV, 50 Hz of the transmission trans

[answerhappygod]

The Hvdc Bridge Rectifier Is Designed To Produce 300kv Output Voltage From 33 Kv 250 Kv 50 Hz Of The Transmission Trans 1 (31.48 KiB) Viewed 33 times

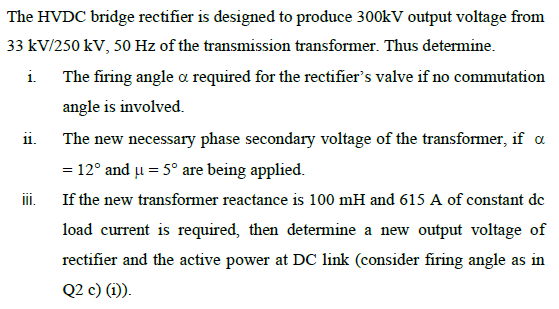

The HVDC bridge rectifier is designed to produce 300kV output voltage from 33 kV/250 kV, 50 Hz of the transmission transformer. Thus determine. i. 11. III. The firing angle a required for the rectifier's valve if no commutation angle is involved. The new necessary phase secondary voltage of the transformer, if a = 12° and μ = 5° are being applied. If the new transformer reactance is 100 mH and 615 A of constant de load current is required, then determine a new output voltage of rectifier and the active power at DC link (consider firing angle as in Q2 c) (1)).
