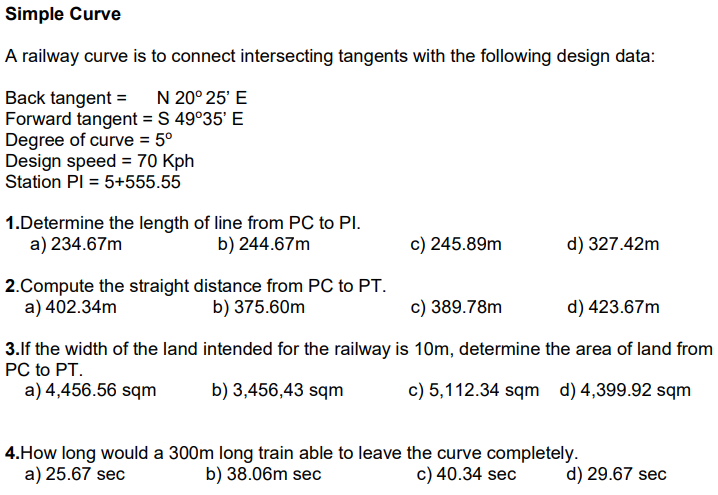

Simple Curve A railway curve is to connect intersecting tangents with the following design data: Back tangent = N 20° 25
