A Force P 72 Kn Is Applied At The Plate Bolt Connection Shown Determine The Required Diameter In Mm 2 Decimals Of T 1 (78.48 KiB) Viewed 21 times
b)
A Force P 72 Kn Is Applied At The Plate Bolt Connection Shown Determine The Required Diameter In Mm 2 Decimals Of T 2 (48.34 KiB) Viewed 21 times

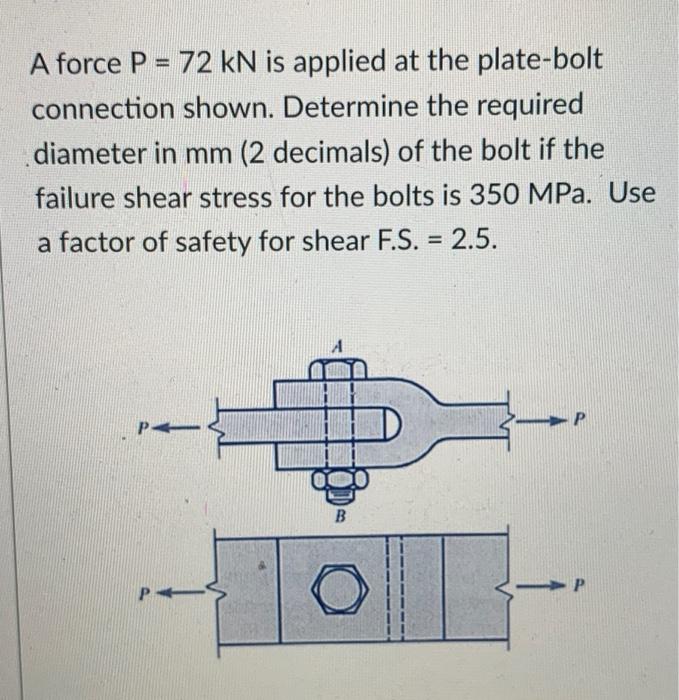

A force P = 72 kN is applied at the plate-bolt connection shown. Determine the required diameter in mm (2 decimals) of the bolt if the failure shear stress for the bolts is 350 MPa. Use a factor of safety for shear F.S. = 2.5. B P

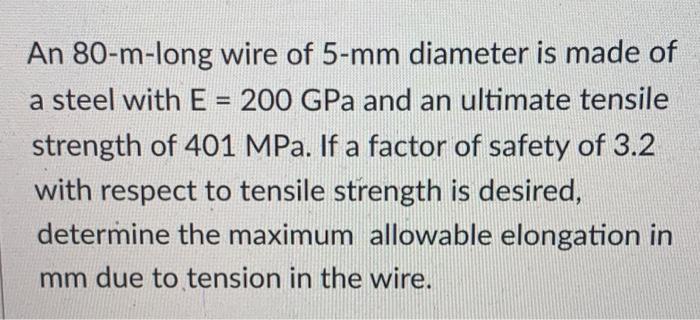

An 80-m-long wire of 5-mm diameter is made of a steel with E = 200 GPa and an ultimate tensile strength of 401 MPa. If a factor of safety of 3.2 with respect to tensile strength is desired, determine the maximum allowable elongation in mm due to tension in the wire.
