Consider the beam shown in (Figure 1). EI is constant. Use the conjugate-beam method. Suppose that M= 20 k ft, and EI is

[answerhappygod]

Consider The Beam Shown In Figure 1 Ei Is Constant Use The Conjugate Beam Method Suppose That M 20 K Ft And Ei Is 1 (60.44 KiB) Viewed 13 times

Consider The Beam Shown In Figure 1 Ei Is Constant Use The Conjugate Beam Method Suppose That M 20 K Ft And Ei Is 2 (28.05 KiB) Viewed 13 times

Consider The Beam Shown In Figure 1 Ei Is Constant Use The Conjugate Beam Method Suppose That M 20 K Ft And Ei Is 3 (22.06 KiB) Viewed 13 times

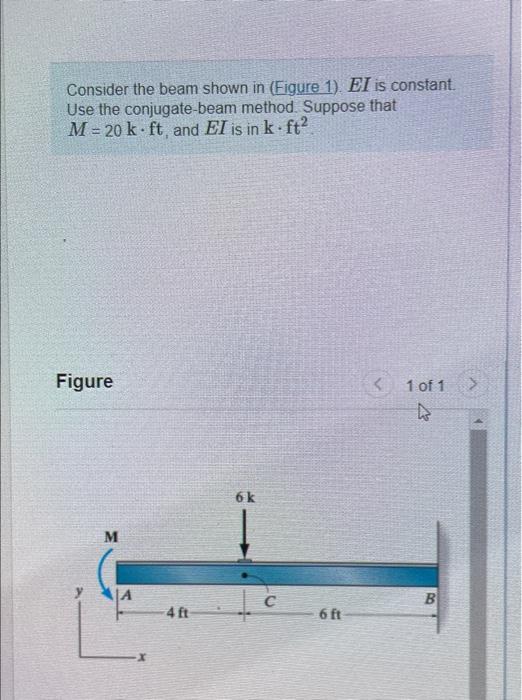

Consider the beam shown in (Figure 1). EI is constant. Use the conjugate-beam method. Suppose that M= 20 k ft, and EI is in k ft2. Figure M 4 ft 6k C 6 ft < 1 of 1 > B 4

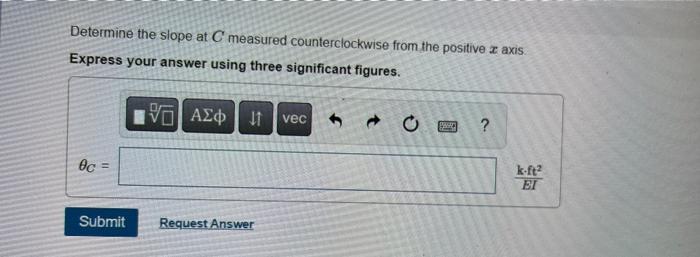

Determine the slope at C measured counterclockwise from the positive z axis. Express your answer using three significant figures. VE] ΑΣΦ | 11 vec 0c= Submit Request Answer PAS ? k-ft² ΕΓ

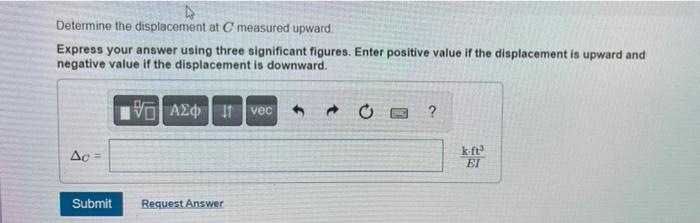

Determine the displacement at C measured upward. Express your answer using three significant figures. Enter positive value if the displacement is upward and negative value if the displacement is downward. [5] ΑΣΦ | 11 | vec 4 Ac = Submit Request Answer ? k-ft EI
