Please help find the displacement by hand calculation for the bridge at each load.
- Please Help Find The Displacement By Hand Calculation For The Bridge At Each Load 1 (31.41 KiB) Viewed 13 times
- Please Help Find The Displacement By Hand Calculation For The Bridge At Each Load 2 (50.22 KiB) Viewed 13 times

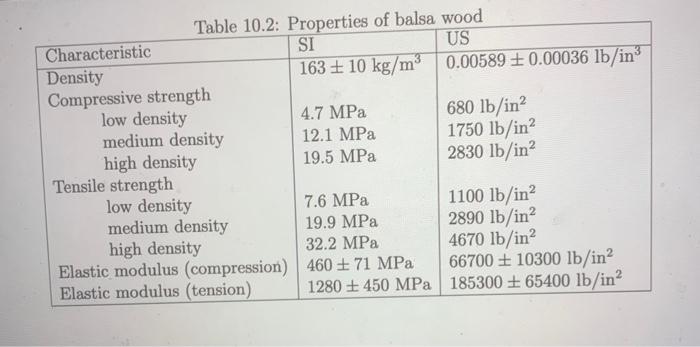

Table 10.2: Properties of balsa wood US 0.00589 +0.00036 lb/in³ Characteristic Density Compressive strength low density medium density high density. Tensile strength low density medium density high density Elastic modulus (compression) Elastic modulus (tension) SI 163 ±10 kg/m³ 4.7 MPa 12.1 MPa 19.5 MPa 7.6 MPa 19.9 MPa 32.2 MPa 460 ± 71 MPa 1280 + 450 MPa 680 lb/in² 1750 lb/in² 2830 lb/in² 1100 lb/in² 2890 lb/in² 4670 lb/in² 66700 10300 lb/in² 185300 ± 65400 lb/in²

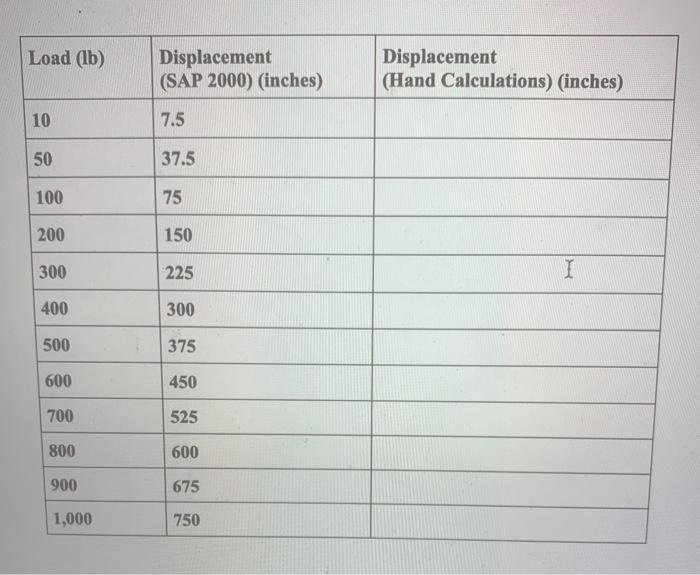

Load (lb) 10 50 100 200 300 400 500 600 700 800 900 1,000 Displacement (SAP 2000) (inches) 7.5 37.5 75 150 225 300 375 450 525 600 675 750 Displacement (Hand Calculations) (inches) I
3 05.0.750.5.0.750.51 30.30 0507505 1.75" 05. 1.75 05 1.75 3.15 10 12" 2.5 1.75 -0.5.0.7505
