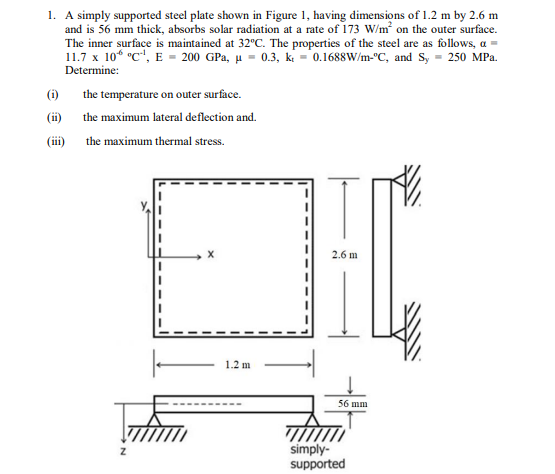

1. A simply supported steel plate shown in Figure 1, having dimensions of 1.2 m by 2.6 m and is 56 mm thick, absorbs solar radiation at a rate of 173 W/m² on the outer surface. The inner surface is maintained at 32°C. The properties of the steel are as follows, a = 11.7 x 10 °C¹, E = 200 GPa, µ = 0.3, k = 0.1688W/m-°C, and Sy = 250 MPa. Determine: (i) the temperature on outer surface. the maximum lateral deflection and. (iii) the maximum thermal stress. m 1.2 m 2.6 m 56 mm simply- supported
