Figure 6 shows a MOS differential amplifier, both MOSFETs are identical. The common mode input VCM is applied, VTH=0.5V,

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Figure 6 shows a MOS differential amplifier, both MOSFETs are identical. The common mode input VCM is applied, VTH=0.5V,

Post by answerhappygod »

Figure 6 Shows A Mos Differential Amplifier Both Mosfets Are Identical The Common Mode Input Vcm Is Applied Vth 0 5v 1
Figure 6 Shows A Mos Differential Amplifier Both Mosfets Are Identical The Common Mode Input Vcm Is Applied Vth 0 5v 1 (18.98 KiB) Viewed 20 times

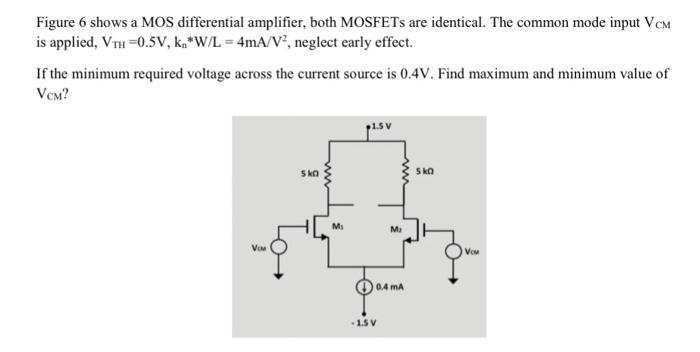

Figure 6 shows a MOS differential amplifier, both MOSFETs are identical. The common mode input VCM is applied, VTH=0.5V, kn *W/L = 4mA/V², neglect early effect. If the minimum required voltage across the current source is 0.4V. Find maximum and minimum value of VCM? VOM SkQ M₁ M₂ 0.4 mA -1.5 V sko VOM
