Example 1 Supply Voltage 13.8kV 2000KVA 13.8kV 480/277 6% reactance ΔΥ 750KVAR Capacitor Bank Ін Ін DI 本 M 500HP ASD 500

[answerhappygod]

1 (206.3 KiB) Viewed 18 times

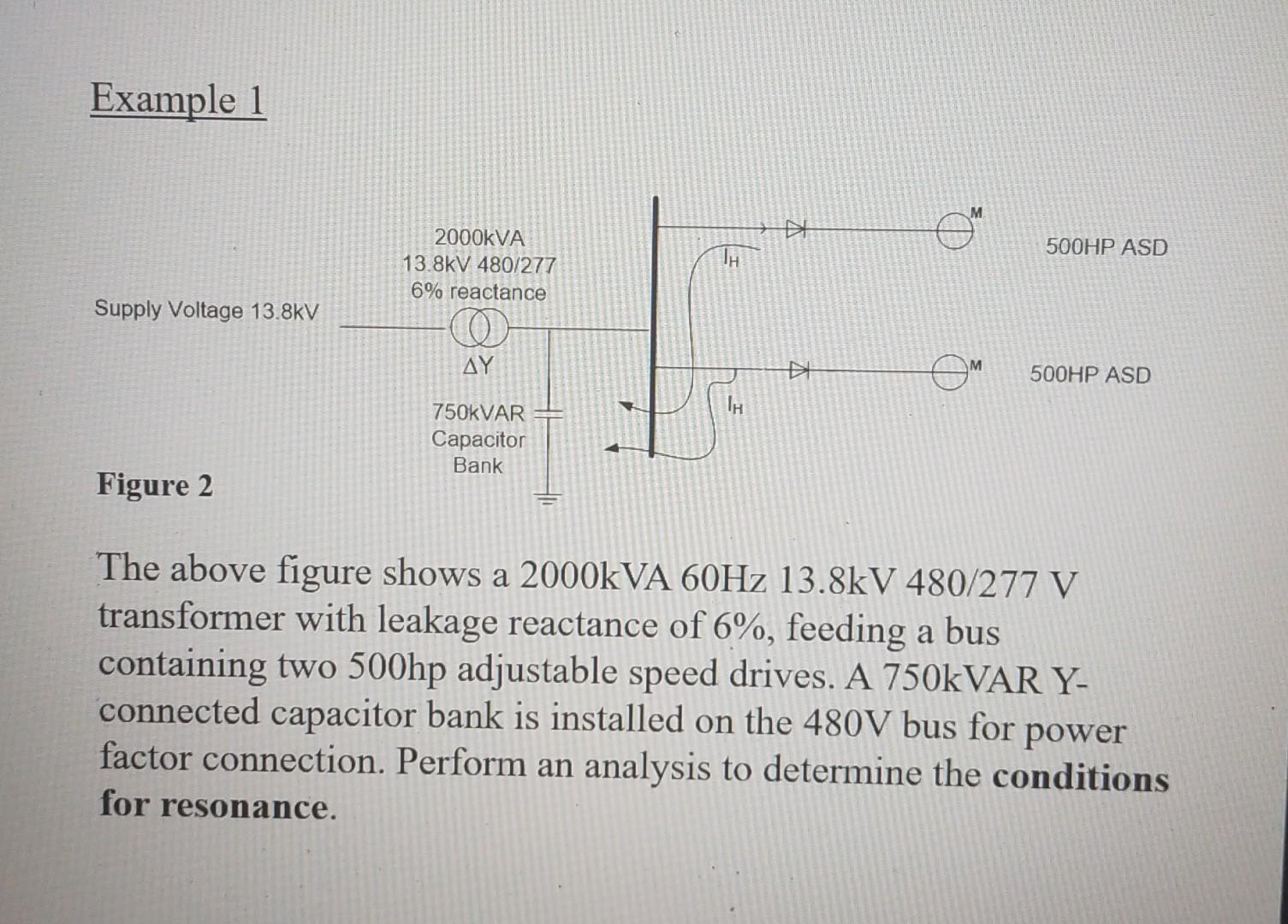

Example 1 Supply Voltage 13.8kV 2000KVA 13.8kV 480/277 6% reactance ΔΥ 750KVAR Capacitor Bank Ін Ін DI 本 M 500HP ASD 500HP ASD Figure 2 The above figure shows a 2000kVA 60Hz 13.8kV 480/277 V transformer with leakage reactance of 6%, feeding a bus containing two 500hp adjustable speed drives. A 750KVAR Y- connected capacitor bank is installed on the 480V bus for power factor connection. Perform an analysis to determine the conditions for resonance.
