multi part question

Post by **answerhappygod** » Sun Jul 03, 2022 12:10 pm

multi part question

: Multi Part Question 1 (37.23 KiB) Viewed 20 times

: Multi Part Question 2 (30.01 KiB) Viewed 20 times

: Multi Part Question 3 (30.49 KiB) Viewed 20 times

: Multi Part Question 4 (18.18 KiB) Viewed 20 times

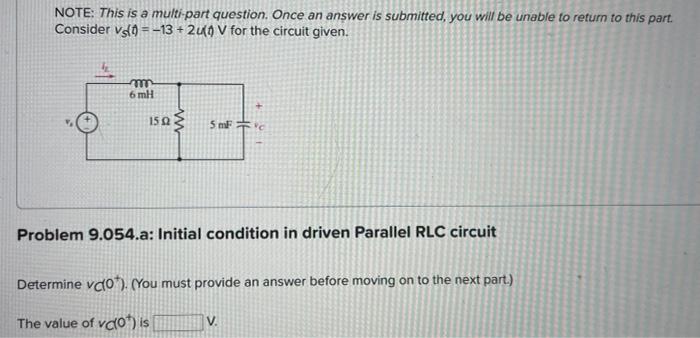

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider vs(0)=-13 +2u(0) V for the circuit given. m 6 mH 150 5 mFc Problem 9.054.a: Initial condition in driven Parallel RLC circuit Determine vc(0*). (You must provide an answer before moving on to the next part.) The value of vc(0¹) is V.

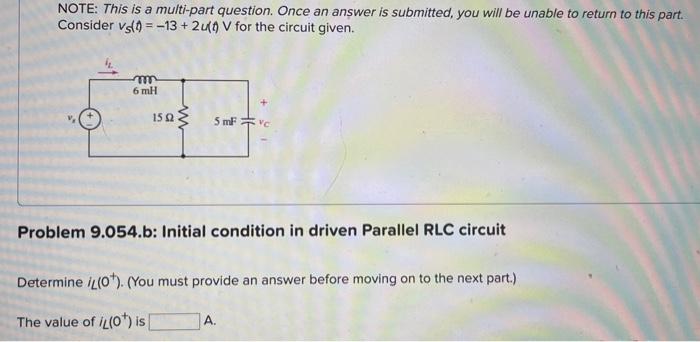

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider vs(t)=-13 +2u(t) V for the circuit given. 6 mH 1502 5 mFvc Problem 9.054.b: Initial condition in driven Parallel RLC circuit Determine iL(0¹). (You must provide an answer before moving on to the next part.) The value of L(0¹) is A.
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider vs(0) = -13 + 2u(0) V for the circuit given. m 6 mH 15 Q2 5 mFvc Problem 9.054.c: Initial conditions in driven Parallel RLC circuit Determine vc(). (You must provide an answer before moving on to the next part.) The value of vc() is

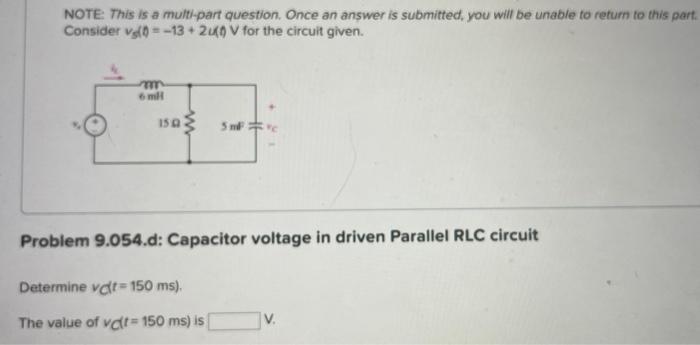

NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part. Consider vg(0-13 + 2u(0) V for the circuit given. m 6 ml 150 5 mFvc Problem 9.054.d: Capacitor voltage in driven Parallel RLC circuit Determine vot=150 ms). The value of vet= 150 ms) is V.
