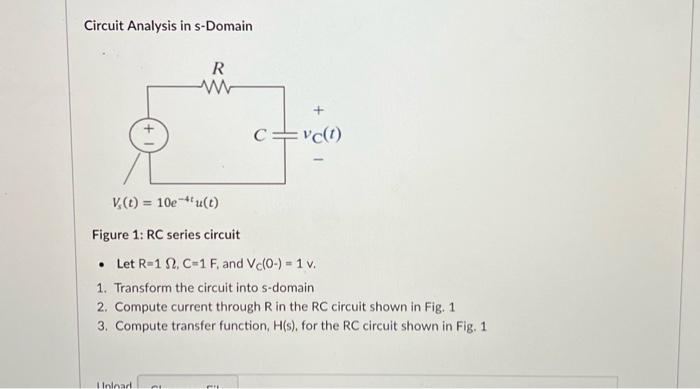

Circuit Analysis in s-Domain Inload R mi V,(t) = 10e-*¹u(t) Figure 1: RC series circuit • Let R=1 S2, C=1 F, and Vc(0-) = 1 v. 1. Transform the circuit into s-domain 2. Compute current through R in the RC circuit shown in Fig. 1 3. Compute transfer function, H(s), for the RC circuit shown in Fig. 1 + Mi C=vc(t)
