Note: Use the following value for R1 based on your group number Group number G2 G3 G4 R1 value 950 1100 1250 Vi(t) R₁ 2k

[answerhappygod]

Note Use The Following Value For R1 Based On Your Group Number Group Number G2 G3 G4 R1 Value 950 1100 1250 Vi T R 2k 1 (53.62 KiB) Viewed 15 times

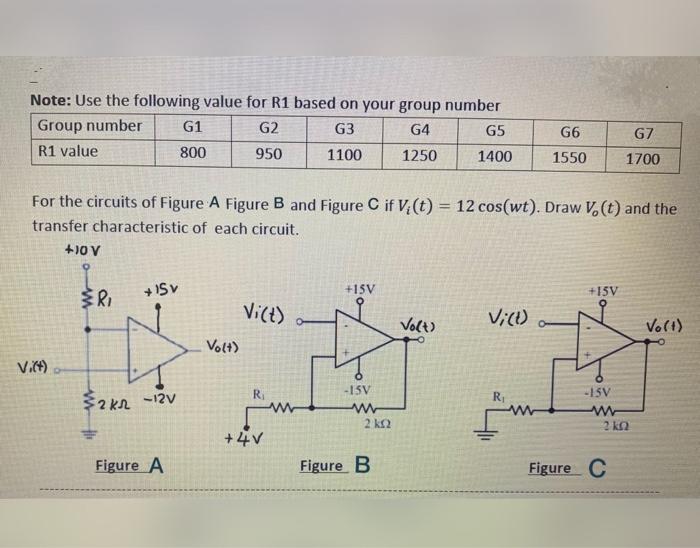

Note: Use the following value for R1 based on your group number Group number G2 G3 G4 R1 value 950 1100 1250 Vi(t) R₁ 2kr For the circuits of Figure A Figure B and Figure C if V (t) = 12 cos(wt). Draw V, (t) and the transfer characteristic of each circuit. +10 V +15v -12V G1 800 Figure A Volt) Vi(t) R₁ +4V www +15V -ISV ww 2 kf2 Figure B G5 1400 Volt) Vi(t) G6 1550 R₁ +15V -15V www G7 1700 2 KQ Figure C Vo(+)
