[3] The link lengths and the value of e, and y for some inverted fourbar crank-slider linkages are defined in the Table

[answerhappygod]

3 The Link Lengths And The Value Of E And Y For Some Inverted Fourbar Crank Slider Linkages Are Defined In The Table 1 (70.89 KiB) Viewed 59 times

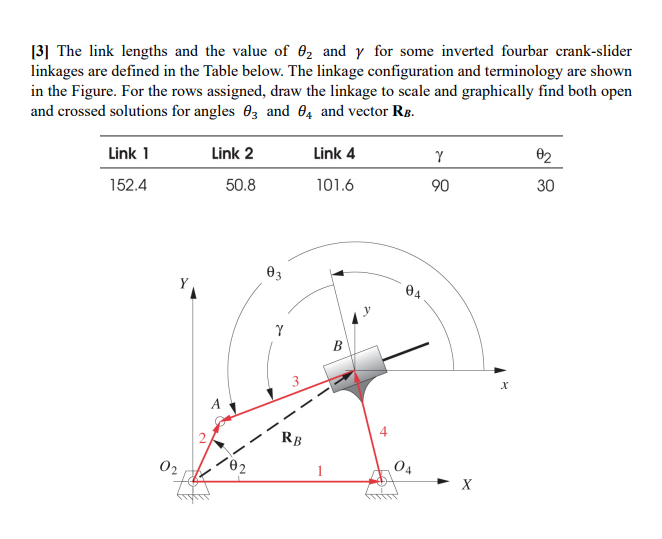

[3] The link lengths and the value of e, and y for some inverted fourbar crank-slider linkages are defined in the Table below. The linkage configuration and terminology are shown in the Figure. For the rows assigned, draw the linkage to scale and graphically find both open and crossed solutions for angles 63 and 04 and vector RB. Link 2 7 82 Link 1 152.4 Link 4 101.6 50.8 90 30 03 04 7 B 2 RB 4 02 02 1 04 X
