A cart-pendulum system is shown below. The cart and the pendulum have the same mass of m and connected by a massless rig

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

A cart-pendulum system is shown below. The cart and the pendulum have the same mass of m and connected by a massless rig

Post by answerhappygod »

A Cart Pendulum System Is Shown Below The Cart And The Pendulum Have The Same Mass Of M And Connected By A Massless Rig 1
A Cart Pendulum System Is Shown Below The Cart And The Pendulum Have The Same Mass Of M And Connected By A Massless Rig 1 (101.74 KiB) Viewed 30 times

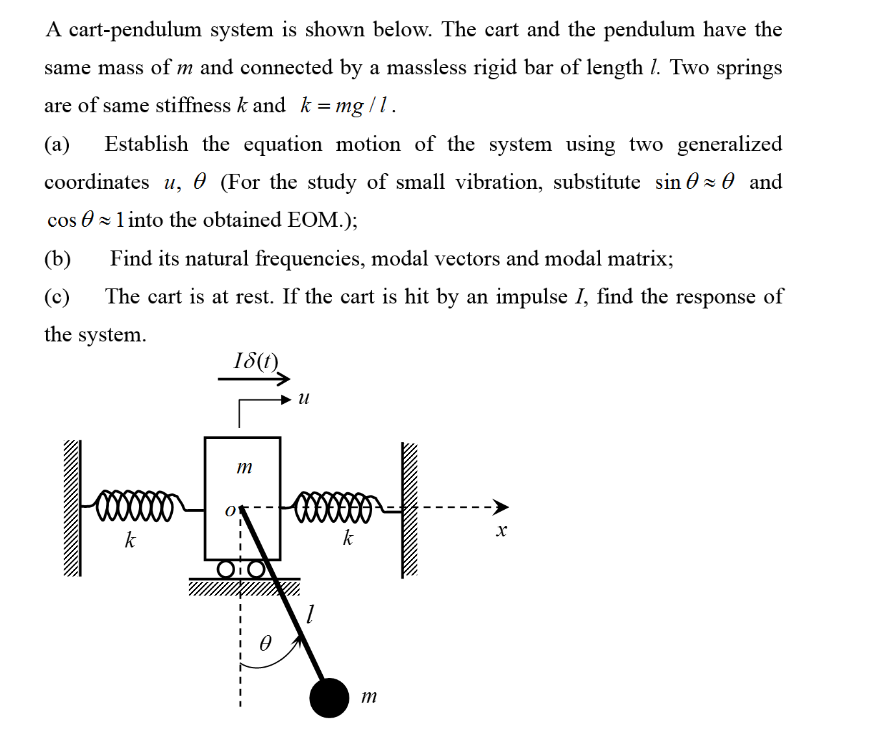

A cart-pendulum system is shown below. The cart and the pendulum have the same mass of m and connected by a massless rigid bar of length 1. Two springs are of same stiffness k and k = mg/1. (a) Establish the equation motion of the system using two generalized coordinates u, (For the study of small vibration, substitute sin 0 and cos 1 into the obtained EOM.); (b) Find its natural frequencies, modal vectors and modal matrix; (c) The cart is at rest. If the cart is hit by an impulse I, find the response of the system. k 18(t) m ● U k m X
