Prerequisites: U₁ = 5 V R₁ R₂ = R4 100 kOhm R5 = 1 kOhm R3 = R₁ = 10 kOhm = b) a) Determine the output voltage U₁ as a f

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Prerequisites: U₁ = 5 V R₁ R₂ = R4 100 kOhm R5 = 1 kOhm R3 = R₁ = 10 kOhm = b) a) Determine the output voltage U₁ as a f

Post by answerhappygod »

Prerequisites U 5 V R R R4 100 Kohm R5 1 Kohm R3 R 10 Kohm B A Determine The Output Voltage U As A F 1
Prerequisites U 5 V R R R4 100 Kohm R5 1 Kohm R3 R 10 Kohm B A Determine The Output Voltage U As A F 1 (69.92 KiB) Viewed 26 times

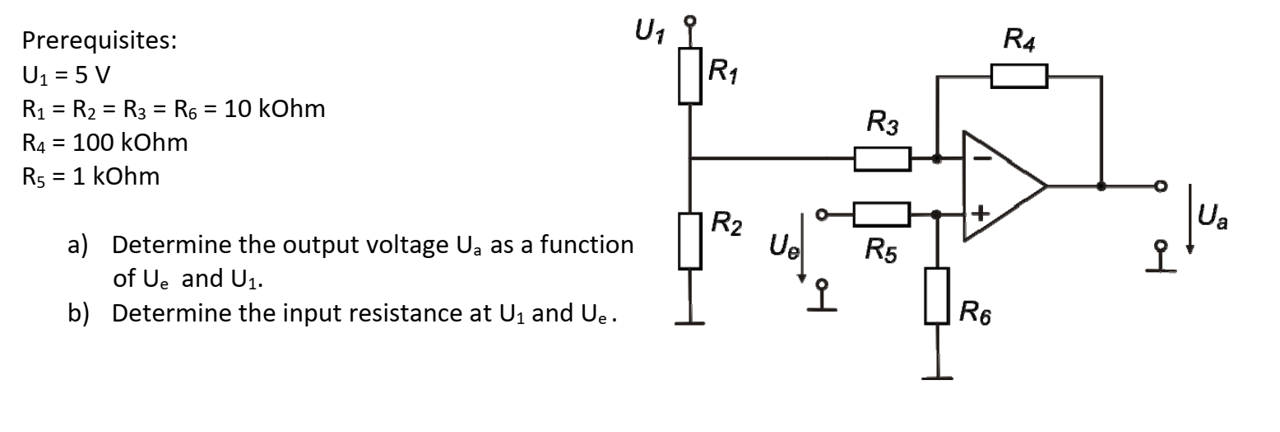

Prerequisites: U₁ = 5 V R₁ R₂ = R4 100 kOhm R5 = 1 kOhm R3 = R₁ = 10 kOhm = b) a) Determine the output voltage U₁ as a function of U₂ and U₁. Determine the input resistance at U₁ and Ue. U₁9 R₁ R₂ R3 vol. R5 i R6 R4 。 |U₂ 오
