i. Sketch Forward Biased Safe Operating Area (FBSOA) of Power
MOSFET device and describe its boundary limits. (Marks: 5)
ii. Using the Gate Charge curve depicted in Figure 1, calculate
the maximum device Turn ON time if a load of 5A is attached with
MOSFET. The device needs to be operated at VGS= 8V with an
available constant gate input current IG=x mA. (x= last two digits
of your roll number)
I Sketch Forward Biased Safe Operating Area Fbsoa Of Power Mosfet Device And Describe Its Boundary Limits Marks 5 1 (33.32 KiB) Viewed 92 times

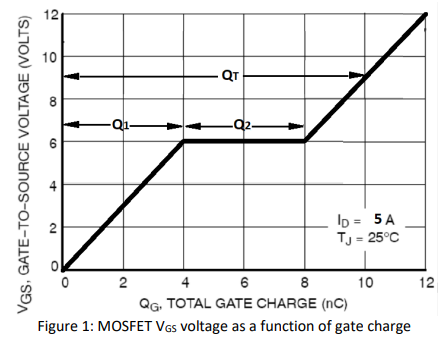

12 10 - QT -QI- VGS, GATE-TO-SOURCE VOLTAGE (VOLTS) co 10 = 5A TJ = 25°C 2 00 12 2 4 6 10 QG, TOTAL GATE CHARGE (NC) Figure 1: MOSFET Vos voltage as a function of gate charge
