3. A tee-shaped flexural member (Fig. 3a) is subjected to an internal axial force of 2,200 lb + ((Student IDx100), an in

[answerhappygod]

3 A Tee Shaped Flexural Member Fig 3a Is Subjected To An Internal Axial Force Of 2 200 Lb Student Idx100 An In 1 (21.63 KiB) Viewed 24 times

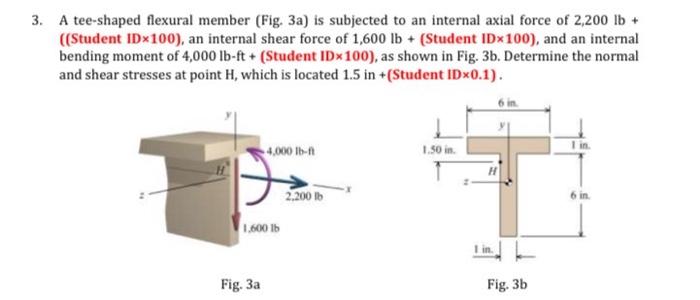

3. A tee-shaped flexural member (Fig. 3a) is subjected to an internal axial force of 2,200 lb + ((Student IDx100), an internal shear force of 1,600 lb + (Student IDx100), and an internal bending moment of 4,000 lb-ft + (Student IDx 100), as shown in Fig. 3b. Determine the normal and shear stresses at point H, which is located 1.5 in +(Student IDx0.1). 4,000 lb-ft 1.50 in. 2,200 R 1,600 16 Fig. 3a Fig. 3b
