The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; 1-843 in.). Assume

Post by answerhappygod »

The Simply Supported Beam Consists Of A W21 X 44 Structural Steel Wide Flange Shape E 29 000 Ksi 1 843 In Assume 1
The Simply Supported Beam Consists Of A W21 X 44 Structural Steel Wide Flange Shape E 29 000 Ksi 1 843 In Assume 1 (80.09 KiB) Viewed 48 times

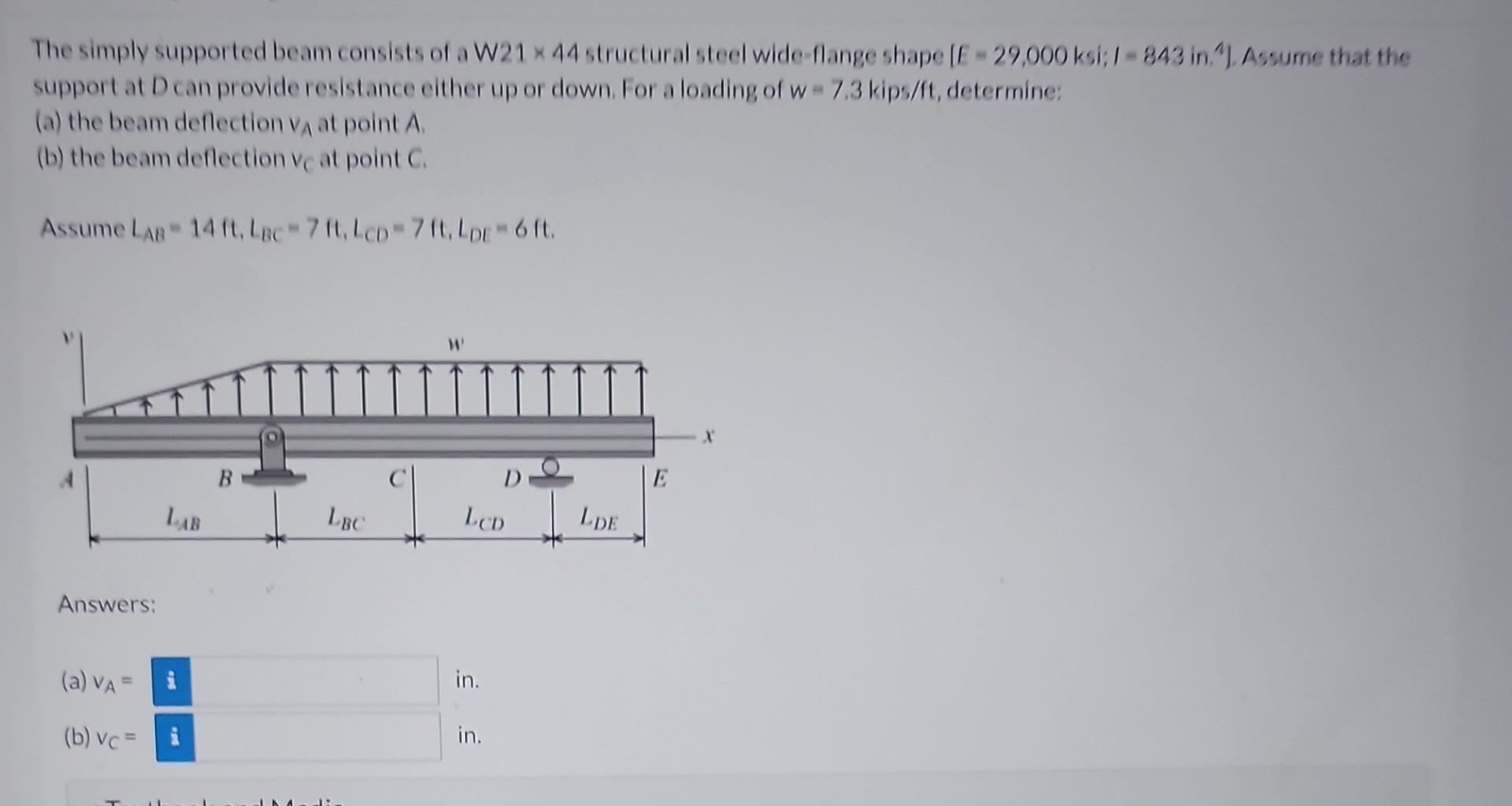

The simply supported beam consists of a W21 x 44 structural steel wide-flange shape [E = 29,000 ksi; 1-843 in.). Assume that the support at D can provide resistance either up or down. For a loading of w- 7,3 kips/ft, determine: (a) the beam deflection VA at point A. (b) the beam deflection ve at point C. Assume LAR 14 ft, Lac-7 ft, LCD-7 ft. LDE = 6 ft. B LBC LCD Answers: (a) VA = i (b) vc= i in. in. LDE X
