For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M

Post by answerhappygod »

For The Beam Illustrated In The Figure Find The Locations And Magnitudes Of The Maximum Tensile Bending Stress Due To M 1
For The Beam Illustrated In The Figure Find The Locations And Magnitudes Of The Maximum Tensile Bending Stress Due To M 1 (35.99 KiB) Viewed 65 times

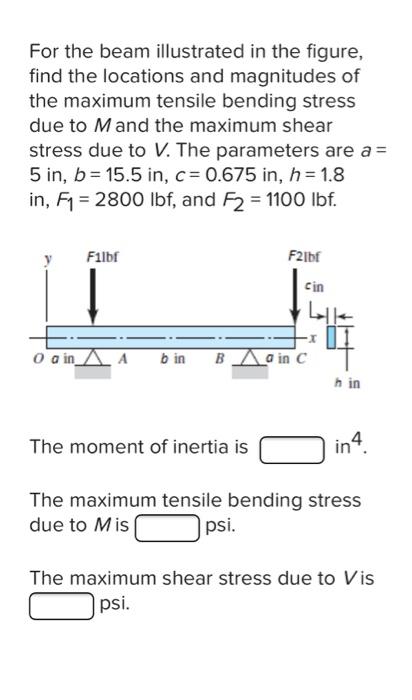

For the beam illustrated in the figure, find the locations and magnitudes of the maximum tensile bending stress due to M and the maximum shear stress due to V. The parameters are a = 5 in, b= 15.5 in, c = 0.675 in, h = 1.8 in, F₁ = 2800 lbf, and F2 = 1100 lbf. Filbf F21bf 0 G in A b in Bain C h in The moment of inertia is in4 The maximum tensile bending stress due to Mis psi. The maximum shear stress due to Vis psi. cin
