ii. Given the feedback system of Figure 2.3: R(s) + K Figure 2.3 Find the following: a. The closed loop transfer functio

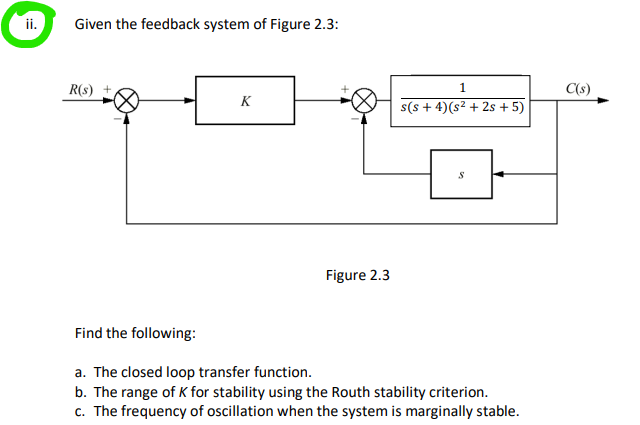

ii. Given the feedback system of Figure 2.3: R(s) + K Figure 2.3 Find the following: a. The closed loop transfer function. b. The range of K for stability using the Routh stability criterion. c. The frequency of oscillation when the system is marginally stable. 1 s(s+ 4)(s² + 2s + 5) S C(s)
