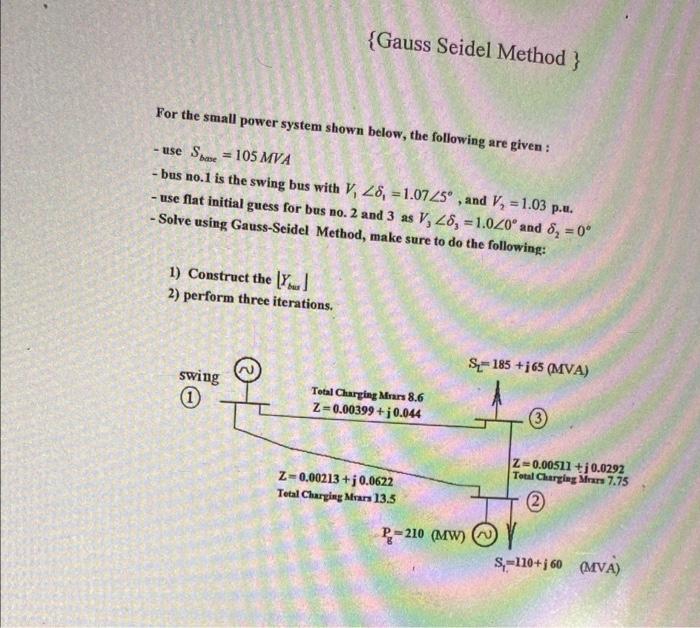

{Gauss Seidel Method } For the small power system shown below, the following are given : use Sbae 105 MVA bus no.1 is the swing bus with V, 28, =1.0725°, and V, = 1.03 p.u. - use flat initial guess for bus no. 2 and 3 - Solve using Gauss-Seidel Method, make sure to do the following: as V, 26, 1.020 and 8₂ = 0° 1) Construct the [...] 2) perform three iterations. S185 +165 (MVA) swing Total Charging Mars 8.6 Z=0.00399+j0.044 Z-0.00213+j0.0622 Total Charging Mars 13.5 P-210 (MW) Z-0.00511 +0.0292 Total Charging Mars 7.75 S-110+j60 (MVA)
