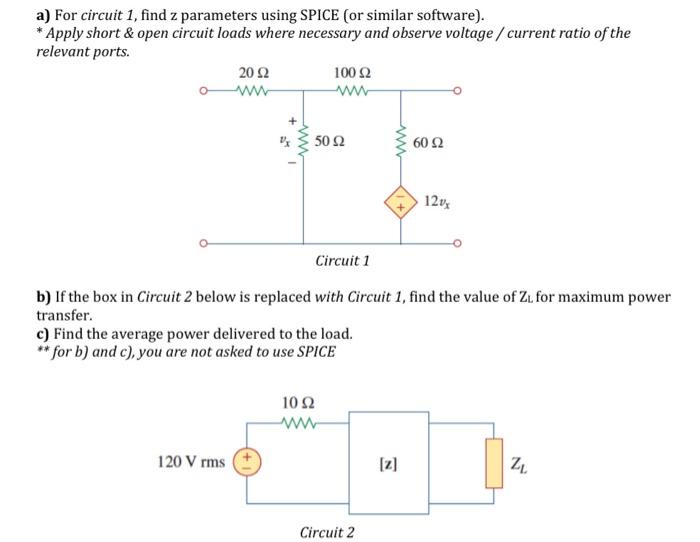

a) For circuit 1, find z parameters using SPICE (or similar software).
* Apply short & open circuit loads where necessary and observe voltage / current ratio of the relevant ports.
b) If the box in Circuit 2 below is replaced with Circuit 1, find the value of ZL for maximum power transfer.c) Find the average power delivered to the load.** for b) and c), you are not asked to use SPICE
b) If the box in Circuit 2 below is replaced with Circuit 1, find the value of ZL for maximum power transfer.
c) Find the average power delivered to the load.
** for b) and c), you are not asked to use SPICE
A For Circuit 1 Find Z Parameters Using Spice Or Similar Software Apply Short Open Circuit Loads Where Necessar 1 (30.95 KiB) Viewed 31 times
a) For circuit 1, find z parameters using SPICE (or similar software). * Apply short & open circuit loads where necessary and observe voltage / current ratio of the relevant ports. 20 Ω 100 £2 www www 5092 60 Ω 12% Circuit 1 b) If the box in Circuit 2 below is replaced with Circuit 1, find the value of Z₁. for maximum power transfer. c) Find the average power delivered to the load. ** for b) and c), you are not asked to use SPICE 10 2 ww 120 Vrms Z Circuit 2
