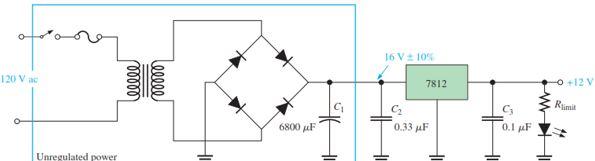

Create a Block Diagram of the regulated dc power supply shown in
the picture.
Provide a high-level explanation of your block diagram about the
theory and concept you learned and used while doing this
activity.
Create A Block Diagram Of The Regulated Dc Power Supply Shown In The Picture Provide A High Level Explanation Of Your B 1 (12.29 KiB) Viewed 30 times
120 Vac Unregulated power moooo 00000 TH 6800 µF 16 V ± 10% 0.33 μF 7812 C₂ 0.1 μF -0+12 V Rimi
