Line 1 G1 Transformer Line Generator Geny = 144kV 144 MVA GenMVA=144 MVA X₁ X₂=1.38 ohms X₁-4.13 ohms X-=18% X"d=0.21pu

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Line 1 G1 Transformer Line Generator Geny = 144kV 144 MVA GenMVA=144 MVA X₁ X₂=1.38 ohms X₁-4.13 ohms X-=18% X"d=0.21pu

Post by answerhappygod »

Line 1 G1 Transformer Line Generator Geny 144kv 144 Mva Genmva 144 Mva X X 1 38 Ohms X 4 13 Ohms X 18 X D 0 21pu 1
Line 1 G1 Transformer Line Generator Geny 144kv 144 Mva Genmva 144 Mva X X 1 38 Ohms X 4 13 Ohms X 18 X D 0 21pu 1 (17.85 KiB) Viewed 21 times

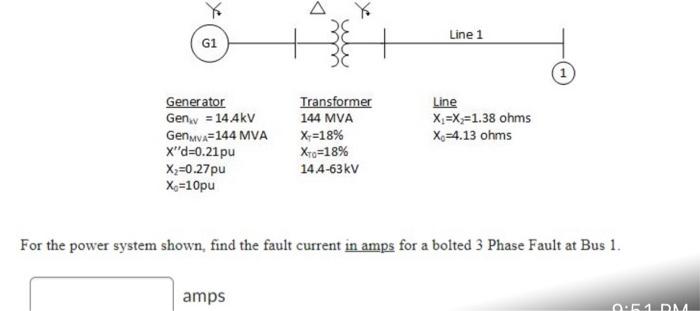

Line 1 G1 Transformer Line Generator Geny = 144kV 144 MVA GenMVA=144 MVA X₁ X₂=1.38 ohms X₁-4.13 ohms X-=18% X"d=0.21pu XTO=18% X₂=0.27pu 144-63kV Xo=10pu For the power system shown, find the fault current in amps for a bolted 3 Phase Fault at Bus 1. amps :51 1 RM
