It is required to design an external memory for 8051 microcontroller according to the following: a) Only external memory

Post by answerhappygod »

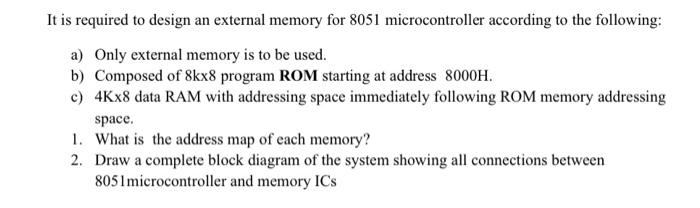

It Is Required To Design An External Memory For 8051 Microcontroller According To The Following A Only External Memory 1
It Is Required To Design An External Memory For 8051 Microcontroller According To The Following A Only External Memory 1 (23.67 KiB) Viewed 14 times
It is required to design an external memory for 8051 microcontroller according to the following: a) Only external memory is to be used. b) Composed of 8kx8 program ROM starting at address 8000H. c) 4Kx8 data RAM with addressing space immediately following ROM memory addressing space. 1. What is the address map of each memory? 2. Draw a complete block diagram of the system showing all connections between 8051 microcontroller and memory ICS
