PAINT BOOTH DOOR Figure 3: Paint Booth Line used in a sequential control pneumatics system for Paint Booth Line as 3 abo

[answerhappygod]

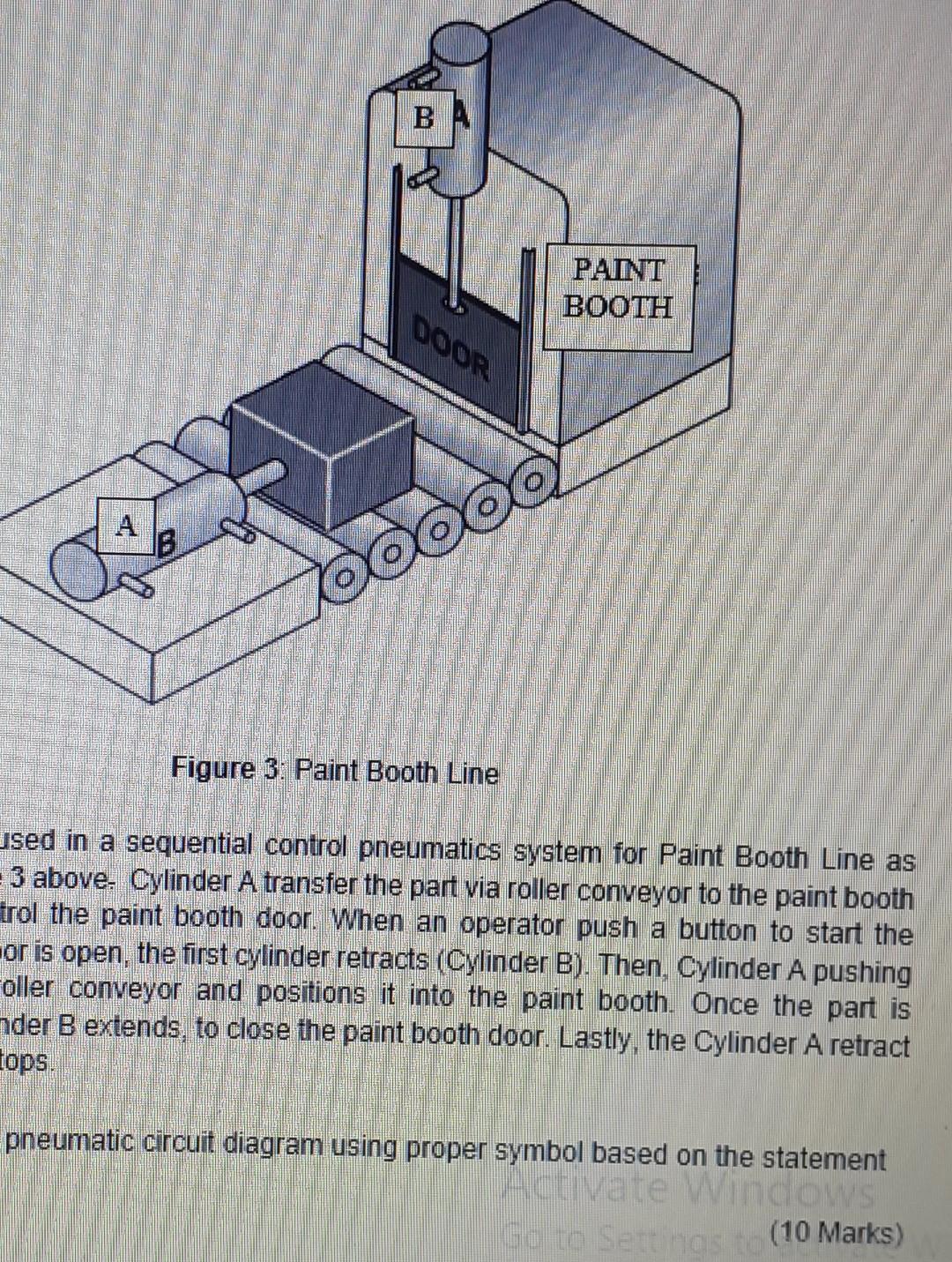

Paint Booth Door Figure 3 Paint Booth Line Used In A Sequential Control Pneumatics System For Paint Booth Line As 3 Abo 1 (417.15 KiB) Viewed 10 times

PAINT BOOTH DOOR Figure 3: Paint Booth Line used in a sequential control pneumatics system for Paint Booth Line as 3 above. Cylinder A transfer the part via roller conveyor to the paint booth trol the paint booth door. When an operator push a button to start the or is open, the first cylinder retracts (Cylinder B). Then, Cylinder A pushing oller conveyor and positions it into the paint booth. Once the part is nder B extends, to close the paint booth door. Lastly, the Cylinder A retract ops. pneumatic circuit diagram using proper symbol based on the statement Activate Windows Go to Settings to (10 Marks) A
