12.36 Design a plain concrete wall footing for a 300-mm- thick reinforced concrete wall that supports a 100-kN/m dead lo

[answerhappygod]

12 36 Design A Plain Concrete Wall Footing For A 300 Mm Thick Reinforced Concrete Wall That Supports A 100 Kn M Dead Lo 1 (69.71 KiB) Viewed 20 times

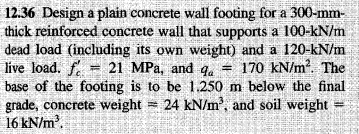

12.36 Design a plain concrete wall footing for a 300-mm- thick reinforced concrete wall that supports a 100-kN/m dead load (including its own weight) and a 120-kN/m live load. f 21 MPa, and q 170 kN/m². The base of the footing is to be 1.250 m below the final grade, concrete weight = 24 kN/m³, and soil weight 16 kN/m³.
