For the mechanism shown below, what is the slip velocity in joint B? where d=0.45, r=0.35, AB=1.20, c= 1.00, 0₂ = 50 and
-
answerhappygod
- Site Admin
- Posts: 899604
- Joined: Mon Aug 02, 2021 8:13 am
For the mechanism shown below, what is the slip velocity in joint B? where d=0.45, r=0.35, AB=1.20, c= 1.00, 0₂ = 50 and

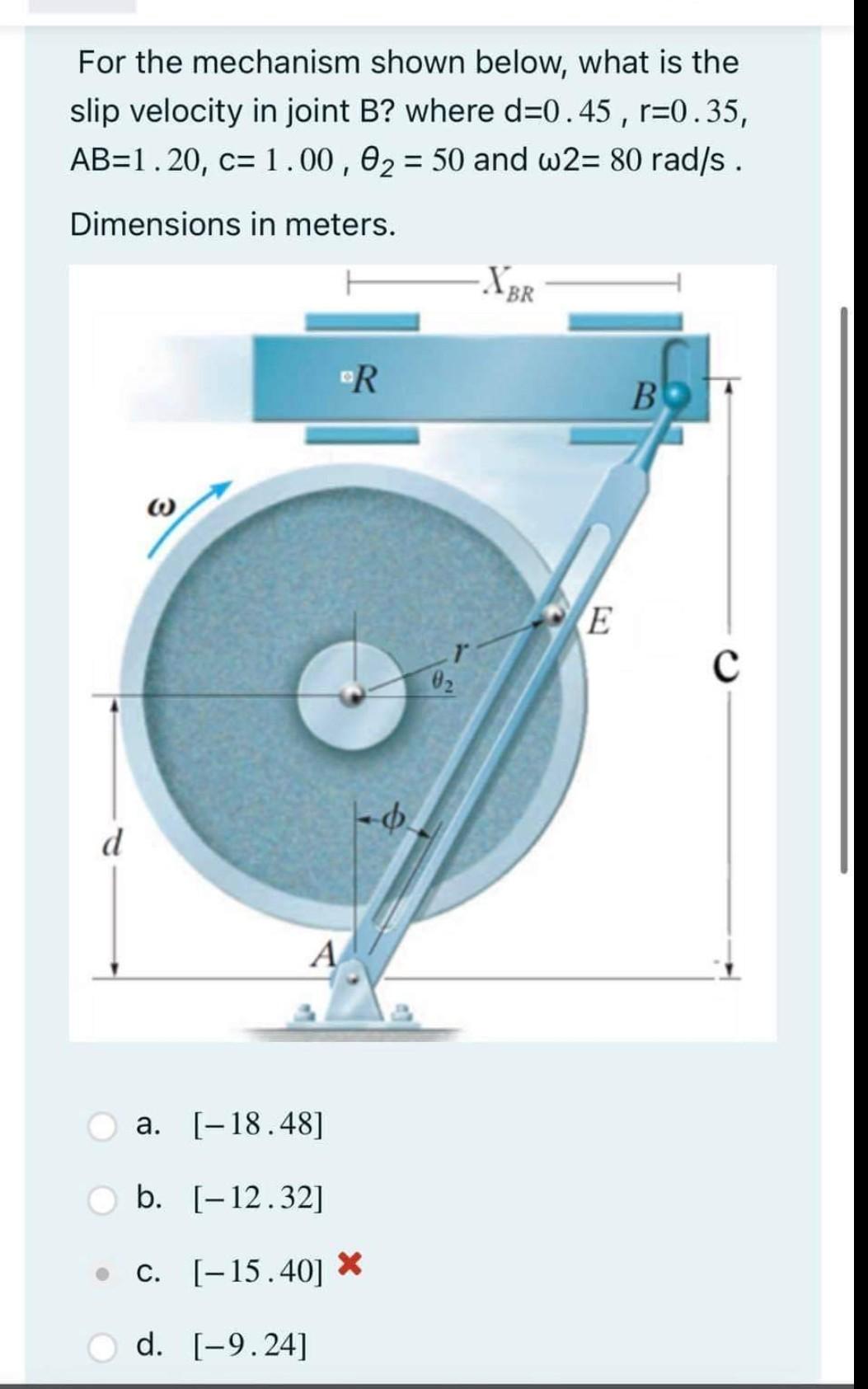

For the mechanism shown below, what is the slip velocity in joint B? where d=0.45, r=0.35, AB=1.20, c= 1.00, 0₂ = 50 and w2= 80 rad/s. Dimensions in meters. -XR R BO d A a. [-18.48] b. [-12.32] c. [-15.40] * d. [-9.24] 6. r 0₂ BR E C
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
