14) Draw the projections of a regular hexagonal plane, sides 20mm having a corner in the VP and indined at 35° to vp if

Post by answerhappygod »

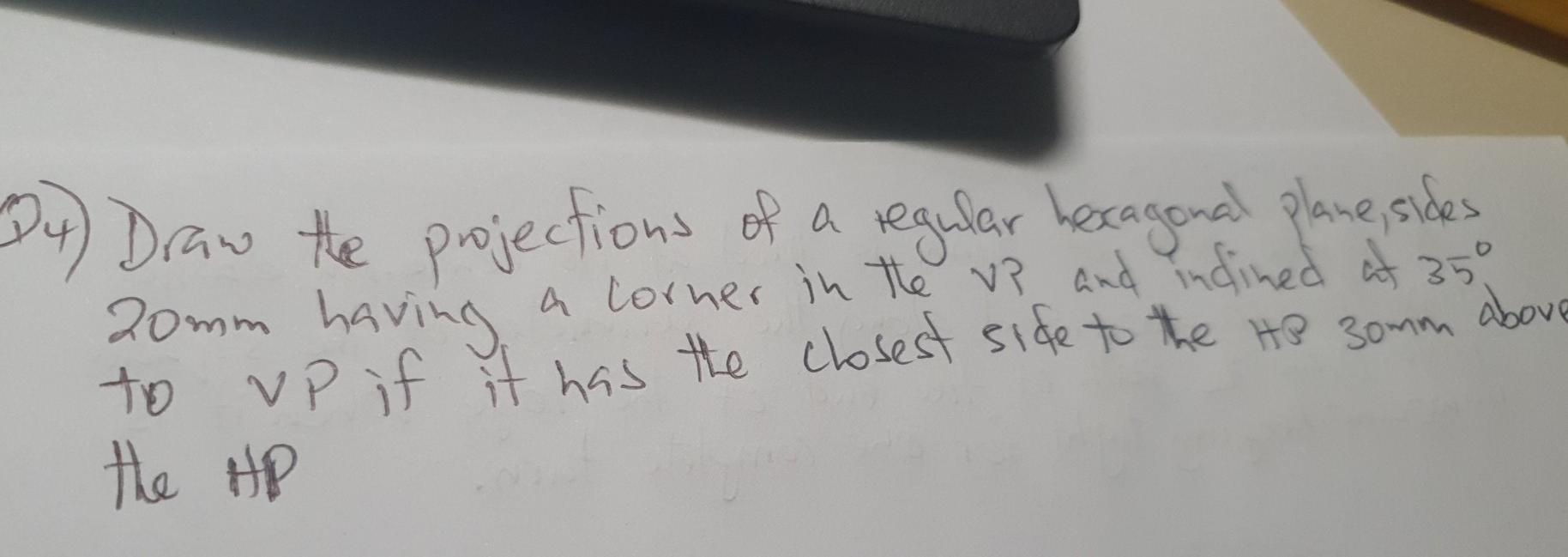

14 Draw The Projections Of A Regular Hexagonal Plane Sides 20mm Having A Corner In The Vp And Indined At 35 To Vp If 1
14 Draw The Projections Of A Regular Hexagonal Plane Sides 20mm Having A Corner In The Vp And Indined At 35 To Vp If 1 (68.31 KiB) Viewed 18 times
14) Draw the projections of a regular hexagonal plane, sides 20mm having a corner in the VP and indined at 35° to vp if it has the closest side to the HP 30mm above the HP
