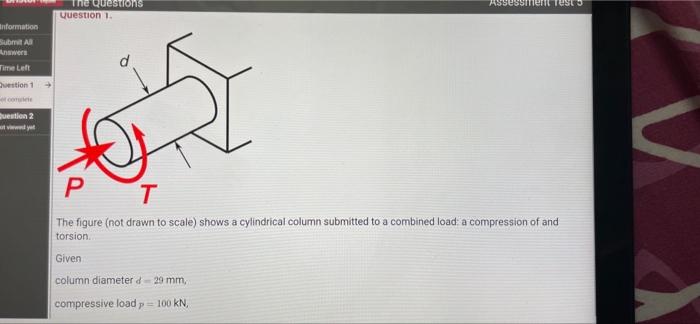

Information Submit All Time Left Question 1 et complete Question 2 vyt Assessment Test 3 P T The figure (not drawn to scale) shows a cylindrical column submitted to a combined load: a compression of and torsion. Given column diameter d-29 mm, compressive load p = 100 KN, The Questions Question 1.

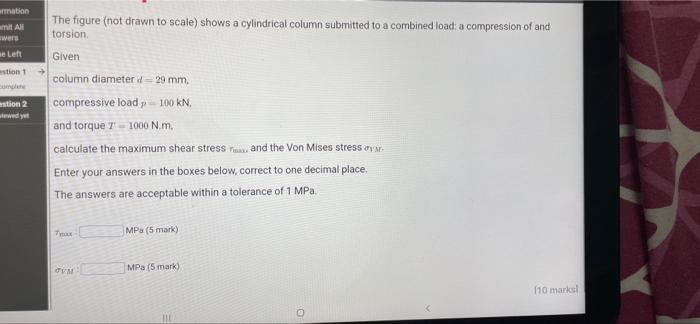

mation mit All wers The figure (not drawn to scale) shows a cylindrical column submitted to a combined load: a compression of and torsion. e Left Given estion 1 column diameter d 29 mm, complete stion 2 compressive load p-100 kN, and torque 7-1000 N.m. calculate the maximum shear stress and the Von Mises stress v Enter your answers in the boxes below, correct to one decimal place. The answers are acceptable within a tolerance of 1 MPa. Tox MPa (5 mark) JVM MPa (5 mark) 110 marksl HIL
