Learning Goal: To analyze a rod assembly in three-dimensional space and determine the support reactions by using the equ

[answerhappygod]

Learning Goal To Analyze A Rod Assembly In Three Dimensional Space And Determine The Support Reactions By Using The Equ 1 (69.58 KiB) Viewed 21 times

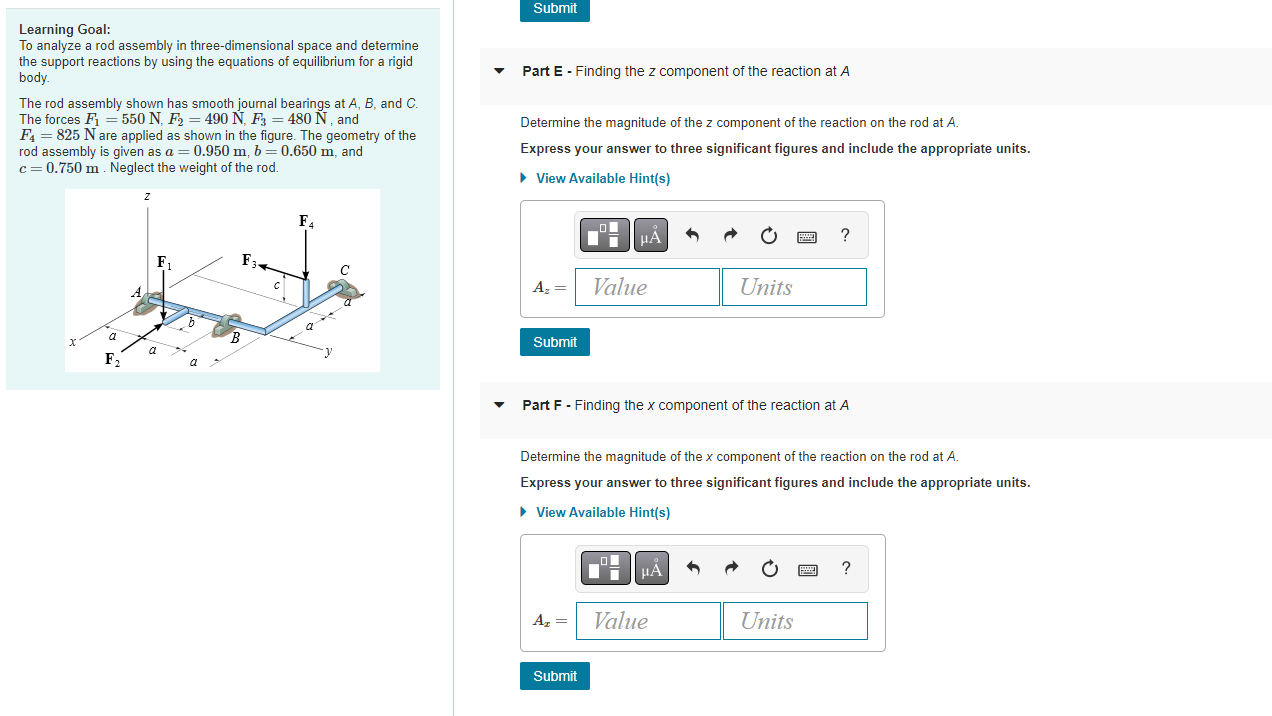

Learning Goal: To analyze a rod assembly in three-dimensional space and determine the support reactions by using the equations of equilibrium for a rigid body. The rod assembly shown has smooth journal bearings at A, B, and C. The forces F₁ = 550 N, F₂ = 490 N, F3 = 480 Ñ, and F4 = 825 N are applied as shown in the figure. The geometry of the rod assembly is given as a = 0.950 m, b = 0.650 m, and c = 0.750 m. Neglect the weight of the rod. B F₁ Submit Part E - Finding the z component of the reaction at A Determine the magnitude of the z component of the reaction on the rod at A. Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) I μA Az = Value Units Submit Part F - Finding the x component of the reaction at A Determine the magnitude of the x component of the reaction on the rod at A. Express your answer to three significant figures and include the appropriate units. ► View Available Hint(s) μA ? A₂ = Units Submit Value
