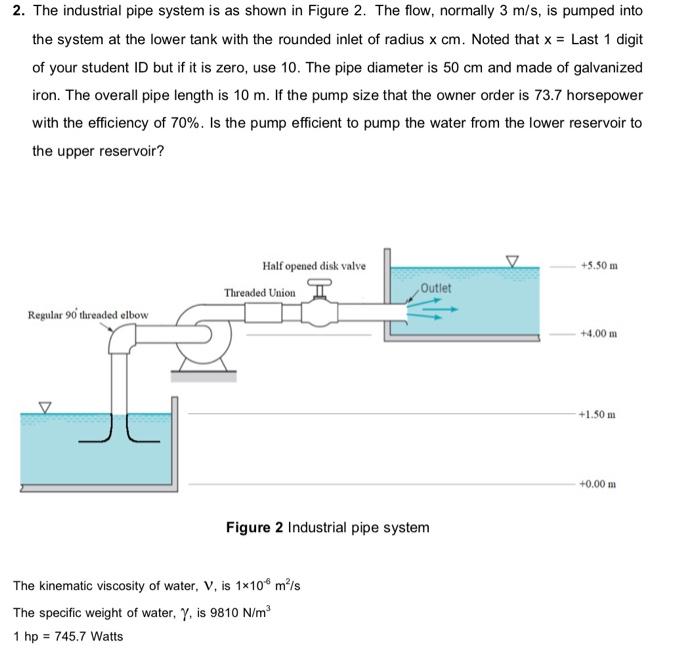

2. The industrial pipe system is as shown in Figure 2. The flow, normally 3 m/s, is pumped into the system at the lower tank with the rounded inlet of radius x cm. Noted that x = Last 1 digit of your student ID but if it is zero, use 10. The pipe diameter is 50 cm and made of galvanized iron. The overall pipe length is 10 m. If the pump size that the owner order is 73.7 horsepower with the efficiency of 70%. Is the pump efficient to pump the water from the lower reservoir to the upper reservoir? +5.50 m Half opened disk valve Outlet Threaded Union Regular 90 threaded elbow +4.00 m +1.50 m. +0.00 m Figure 2 Industrial pipe system The kinematic viscosity of water, V, is 1x10 m²/s The specific weight of water, y, is 9810 N/m³ 1 hp = 745.7 Watts
