For the following state of plane stress: 6x = -50 MPa, oy = 80 MPa, and Txy = 60 MPa what are the values of principal st

[answerhappygod]

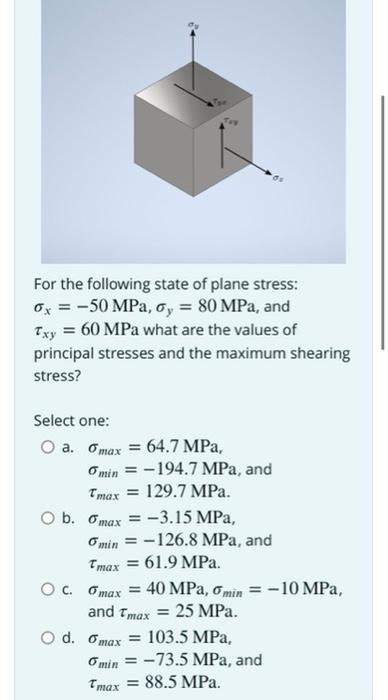

For The Following State Of Plane Stress 6x 50 Mpa Oy 80 Mpa And Txy 60 Mpa What Are The Values Of Principal St 1 (29.28 KiB) Viewed 28 times

For the following state of plane stress: 6x = -50 MPa, oy = 80 MPa, and Txy = 60 MPa what are the values of principal stresses and the maximum shearing stress? Select one: O a. max = 64.7 MPa, Omin=-194.7 MPa, and Tmax = 129.7 MPa. O b. max = -3.15 MPa, Gmin=-126.8 MPa, and Tmax = = 61.9 MPa. O c. max = 40 MPa, min=-10 MPa, and Tmax = 25 MPa. O d. max = 103.5 MPa, Gmin=-73.5 MPa, and Tmax = 88.5 MPa.
