Please solve question 2 with no=55 notice no=55

[answerhappygod]

Please solve question 2 with no=55
notice no=55

Please Solve Question 2 With No 55 Notice No 55 1 (185.08 KiB) Viewed 20 times

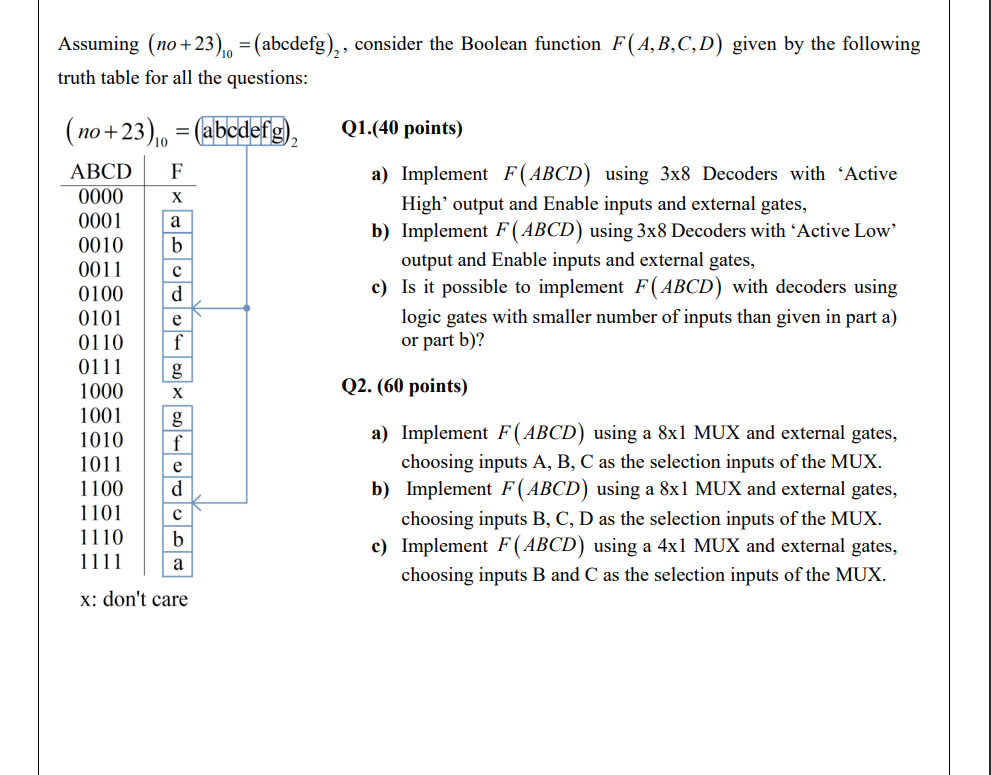

Assuming (no +23) = (abcdefg),, consider the Boolean function F(A,B,C,D) given by the following truth table for all the questions: (no+23) = (abcdefg), Q1.(40 points) ABCD F a) Implement F(ABCD) using 3x8 Decoders with 'Active High' output and Enable inputs and external gates, 0000 X a 0001 0010 b b) Implement F(ABCD) using 3x8 Decoders with 'Active Low' output and Enable inputs and external gates, 0011 с 0100 d 0101 c) Is it possible to implement F(ABCD) with decoders using logic gates with smaller number of inputs than given in part a) or part b)? e 0110 f 0111 g 1000 Q2. (60 points) X 1001 g 1010 f 1011 e a) Implement F(ABCD) using a 8x1 MUX and external gates, choosing inputs A, B, C as the selection inputs of the MUX. b) Implement F(ABCD) using a 8x1 MUX and external gates, 1100 d 1101 с 1110 b choosing inputs B, C, D as the selection inputs of the MUX. c) Implement F(ABCD) using a 4x1 MUX and external gates, choosing inputs B and C as the selection inputs of the MUX. 1111 a x: don't care
