find the maximum power that can be delivered to the resistor R in the circuit of fig
Find The Maximum Power That Can Be Delivered To The Resistor R In The Circuit Of Fig The Variable Resistor R In Fig Is A 1 (42.15 KiB) Viewed 20 times

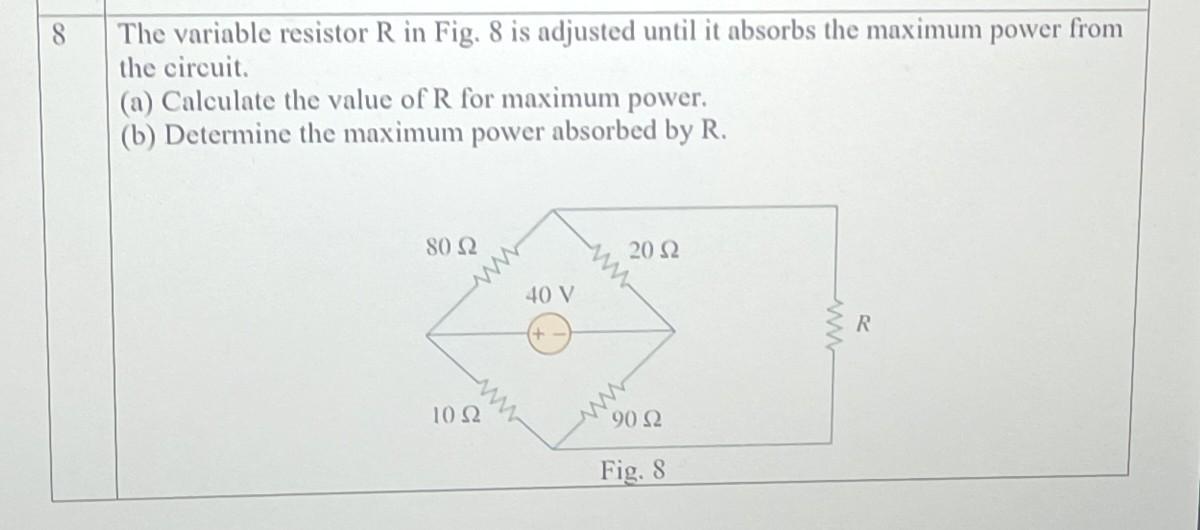

The variable resistor R in fig is adjusted until it absorbs the maximum power from the circuit
a. Calculate the value of R for maximum power.
b. Determine the maximum power absorbed by R.
Find The Maximum Power That Can Be Delivered To The Resistor R In The Circuit Of Fig The Variable Resistor R In Fig Is A 2 (42.15 KiB) Viewed 20 times
8 The variable resistor R in Fig. 8 is adjusted until it absorbs the maximum power from the circuit. (a) Calculate the value of R for maximum power. (b) Determine the maximum power absorbed by R. 80 Ω 20 2 40 V R 10 S2 90 92 Fig. 8
8 The variable resistor R in Fig. 8 is adjusted until it absorbs the maximum power from the circuit. (a) Calculate the value of R for maximum power. (b) Determine the maximum power absorbed by R. 80 Ω 20 2 40 V R 10 S2 90 92 Fig. 8
