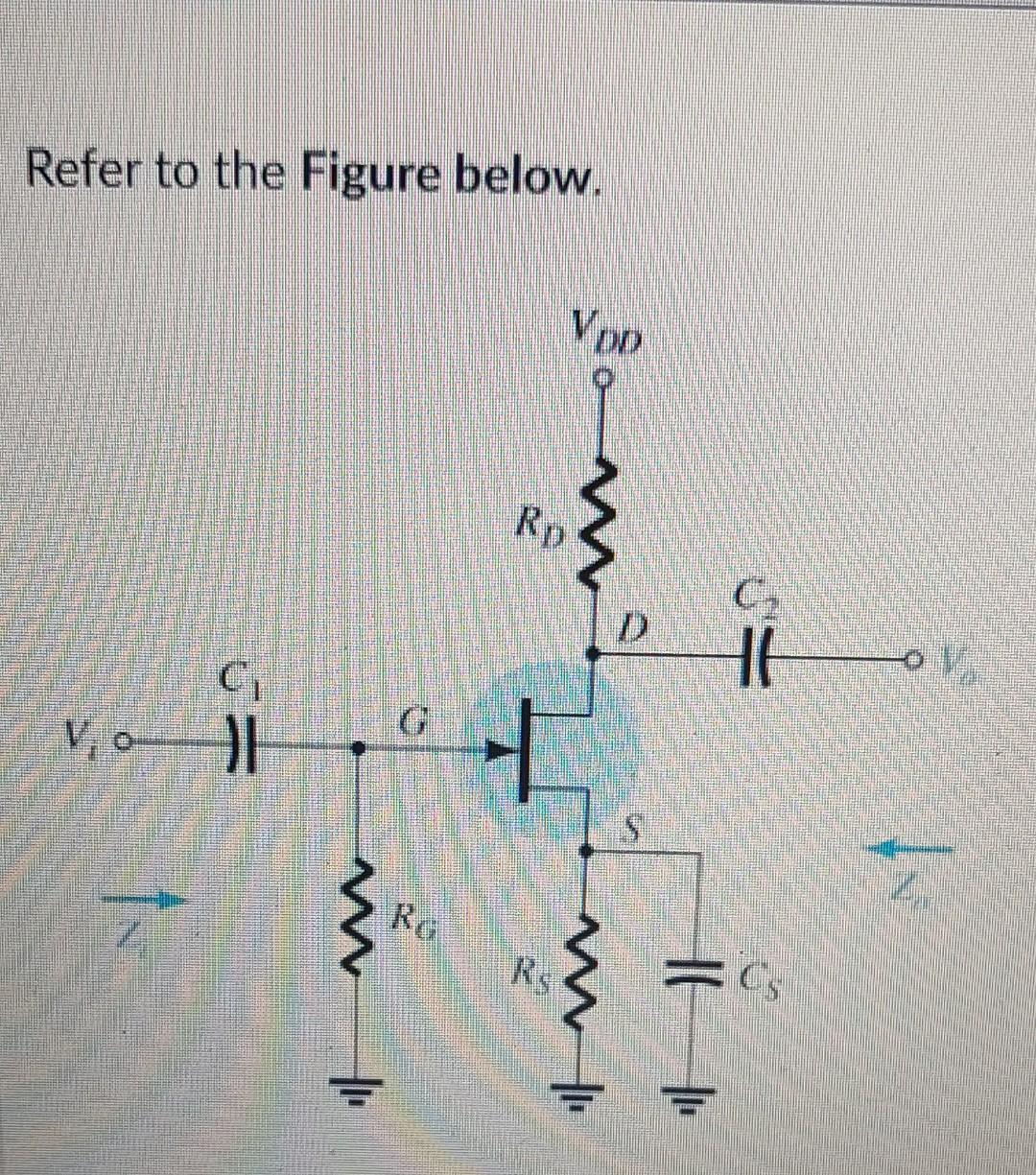

Refer To The Figure Below Vdd Rp C Vo 1 G Ra Rs M 15 1 (373.75 KiB) Viewed 30 times
1.) Compute for
Av= ____(without load)
if VDD=20V, RG=129Mohms, RD=2.4 kohms, yfs = 4.07 mS, yos=0.06mS IDSS =10mA, RL=10kohms and Vi = 19mV.
2. Compute for
Zo= ____ kohms
if VDD=20V, RG=110Mohms, RD=2.6 kohms, yfs = 3.90 mS, yos=0.05mS IDSS =10mA, RL=10kohms and Vi = 19mV.
2 decimal places need asap huhu thanks
