Question 45 6 pts In a certain CS amplifier, RD = 1.24kQ2,Rs = 56002, VDD = 10 V, AND gm = 4.01mS If the source resistor

Post by **answerhappygod** » Thu May 26, 2022 10:45 am

: Question 45 6 Pts In A Certain Cs Amplifier Rd 1 24kq2 Rs 56002 Vdd 10 V And Gm 4 01ms If The Source Resistor 1 (38.43 KiB) Viewed 27 times

Please help me solve these problems asap. I promise to give
upvote.

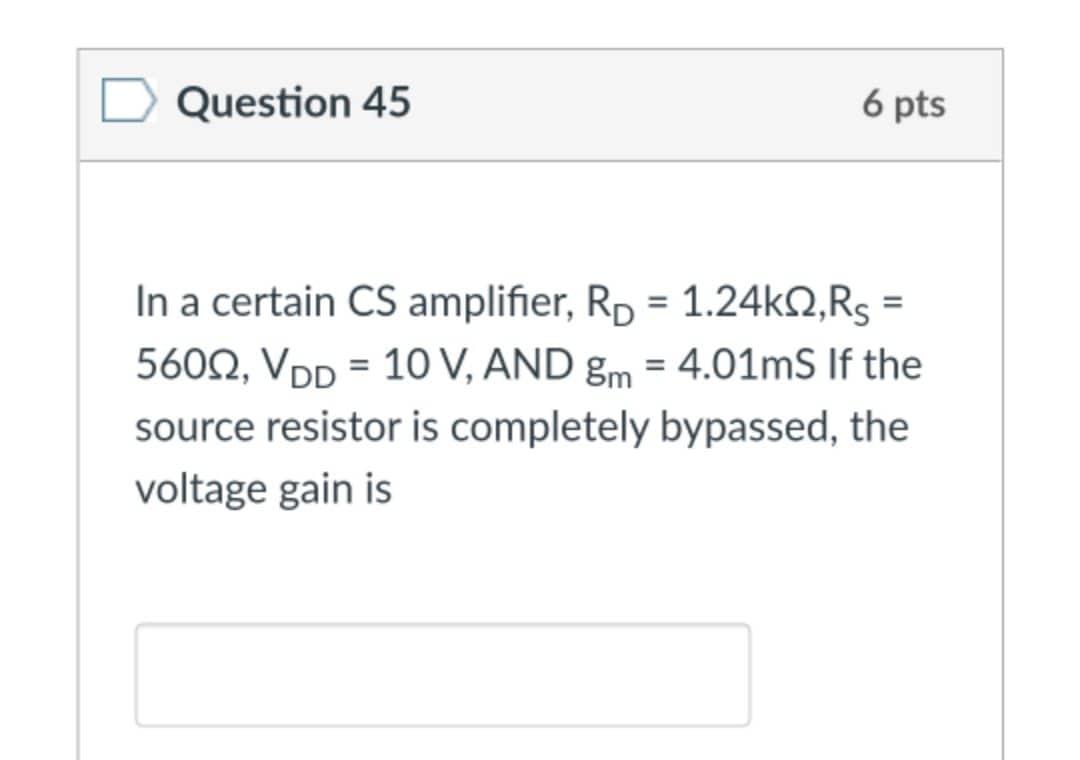

Question 45 6 pts In a certain CS amplifier, RD = 1.24kQ2,Rs = 56002, VDD = 10 V, AND gm = 4.01mS If the source resistor is completely bypassed, the voltage gain is
6 pts Question 46 Refer to the Figure below, calculate Zo if VDD = 9V, RG-1Mohms, Rs=2.3kohms, lpss-16mA, VGSQ = 3.2 V and V₁=-4V, and Yos = 0.026mS) 9 VDD D C₁ G V₁0H S C₂ HE -OV Zi Rs Zo Zo =_____ kohms (note: answer shall be up to 2 decimal places) RG
Question 47 Refer to the Figure below. C₁ V₁0H Rs Cs Compute for Zo= kohms if VDD=20V, RG-181Mohms, RD=2.3 kohms, yfs = 3.99 ms, yos=0.05mS Ipss =10mA, RL=10kohms and Vi= 18mV. (note: answer shall be up to 2 decimal places) G RG VDD RD D S 6 pts
