Styles The figure below shows a state transition diagram that acts as a climate-control system. There are four states: h

[answerhappygod]

Styles The Figure Below Shows A State Transition Diagram That Acts As A Climate Control System There Are Four States H 1 (327.47 KiB) Viewed 24 times

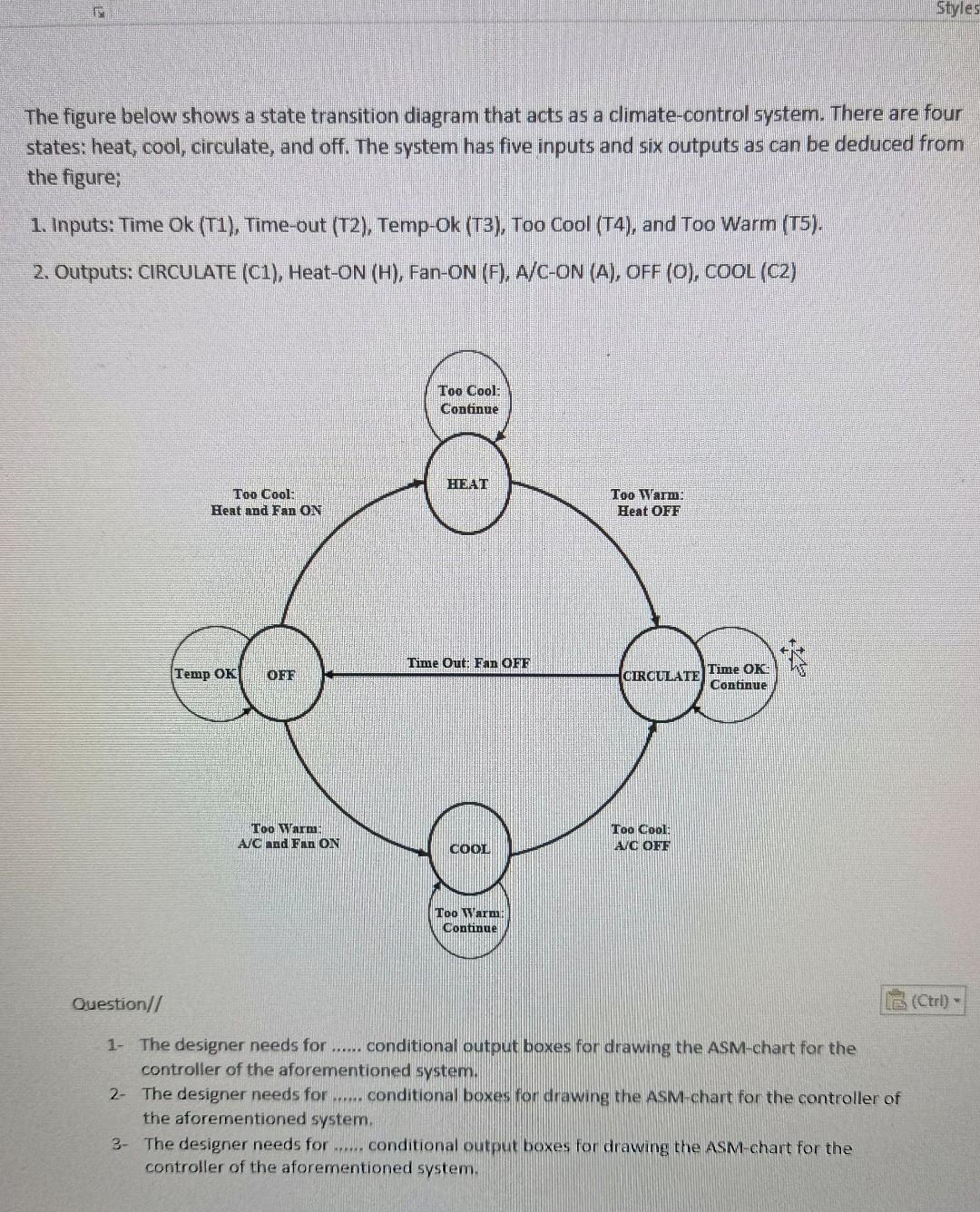

Styles The figure below shows a state transition diagram that acts as a climate-control system. There are four states: heat, cool, circulate, and off. The system has five inputs and six outputs as can be deduced from the figure; 1. Inputs: Time Ok (T1), Time-out (T2), Temp-Ok (T3), Too Cool (T4), and Too Warm (T5). 2. Outputs: CIRCULATE (C1), Heat-ON (H), Fan-ON (F), A/C-ON (A), OFF (O), COOL (C2) Too Cool: Continue HEAT Too Cool: Heat and Fan ON Too Warm: Heat OFF Time Out: Fan OFF OFF Too Warm Too Cool: A/C OFF A/C and Fan ON COOL Too Warm: Continue Question// (Ctrl)- 1- The designer needs for ...... conditional output boxes for drawing the ASM-chart for the controller of the aforementioned system. 2- The designer needs for ........ conditional boxes for drawing the ASM-chart for the controller of the aforementioned system. 3- The designer needs for....... conditional output boxes for drawing the ASM-chart for the controller of the aforementioned system. Temp OK CIRCULATE Time OK Continue
