(f) Figure 5 is a schematic diagram of a standard op-amp summing circuit. R₁ Rf www V₂ O R₂ www R₂ www V₂ VOUT Figure 5

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

(f) Figure 5 is a schematic diagram of a standard op-amp summing circuit. R₁ Rf www V₂ O R₂ www R₂ www V₂ VOUT Figure 5

Post by answerhappygod »

F Figure 5 Is A Schematic Diagram Of A Standard Op Amp Summing Circuit R Rf Www V O R Www R Www V Vout Figure 5 1
F Figure 5 Is A Schematic Diagram Of A Standard Op Amp Summing Circuit R Rf Www V O R Www R Www V Vout Figure 5 1 (18.26 KiB) Viewed 19 times
do asap

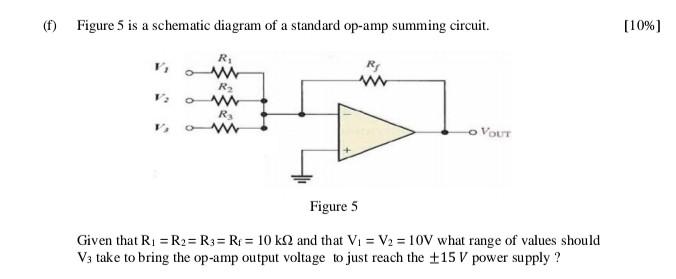

(f) Figure 5 is a schematic diagram of a standard op-amp summing circuit. R₁ Rf www V₂ O R₂ www R₂ www V₂ VOUT Figure 5 Given that R₁ = R₂= R3= R₁ = 10 KS2 and that V₁ = V₂ = 10V what range of values should V3 take to bring the op-amp output voltage to just reach the ±15 V power supply? [10% ]
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
