Question 4 Figure 11 Is A Tow Thomas Low Pass Filter Topology R C R Vin W Figure 11 A What Is The Dc Gain Of The F 1 (34.18 KiB) Viewed 24 times
Pls do all parts asap

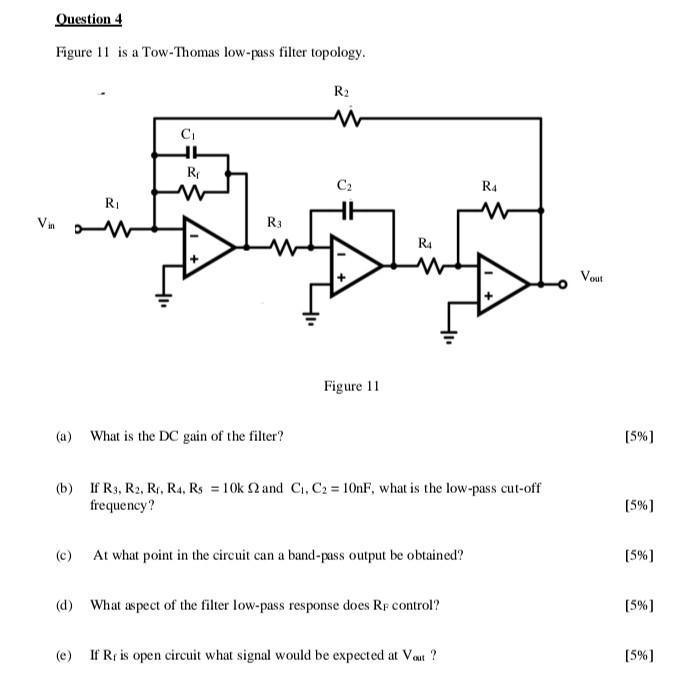

Question 4 Figure 11 is a Tow-Thomas low-pass filter topology. R₂ C₁ R₁ Vin W Figure 11 (a) What is the DC gain of the filter? (b) If R3, R2, Rr, R4, Rs = 10k 2 and C₁, C2 = 10nF, what is the low-pass cut-off frequency? (c) At what point in the circuit can a band-pass output be obtained? (d) What aspect of the filter low-pass response does RF control? (e) If R is open circuit what signal would be expected at Vout? Re W R3 C₂ R4 R4 W Vout [5%] [5%] [5%] [5%] [5%]
